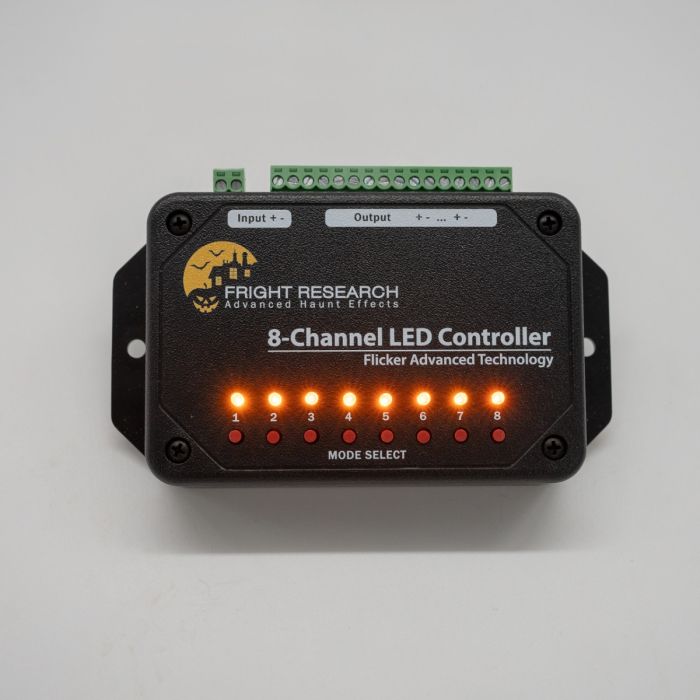

Each output channel utilizes a single pushbutton allows the user to cycle through a wide array of steady-state, flame, electrical flicker and surge, and strobe and pulsation patterns with varying intensities, modulation, and flickering. Internal memory allows the device to resume the previously selected output mode in the event power is loss to the device.  This is also useful for permanent installations where a single operating mode is required continuously even when power is cycled.

There is also an onboard LED for each channel that displays the currently selected mode and its pattern generation.

Features:

• Generates lighting effects for LEDs, low voltage halogen, and incandescent bulbs.
• Eight (8) channel outputs (1A per channel)
• Artificial Intelligence (AI) based prediction algorithms for realistic pattern generation
• Embedded processor low-pass filter employs smooth and organic flow
• Eight (8) onboard pushbuttons allows an easy and quick way to change output patterns
• Eight (8) onboard LEDs display the presently selected operational mode
• Internal memory saves previous mode setting
• True random algorithms provide the most realistic and non-repeating pattern generation possible
• Operating voltage:  7VDC to 24VDC
• Max. load current:  1A per channel
• Reverse voltage protection
• Mounting holes for easy installation
• Removable terminal blocks

Available Effects

• Steady-state modes
• Candle and flame effects

Typical Applications

• Halloween attractions
• Dark rides and attractions
• Candelabras
• Lanterns and flashlights
• Museum and stage special effects
• Weddings and other events
• Props and animatronics
• Illuminated signs
