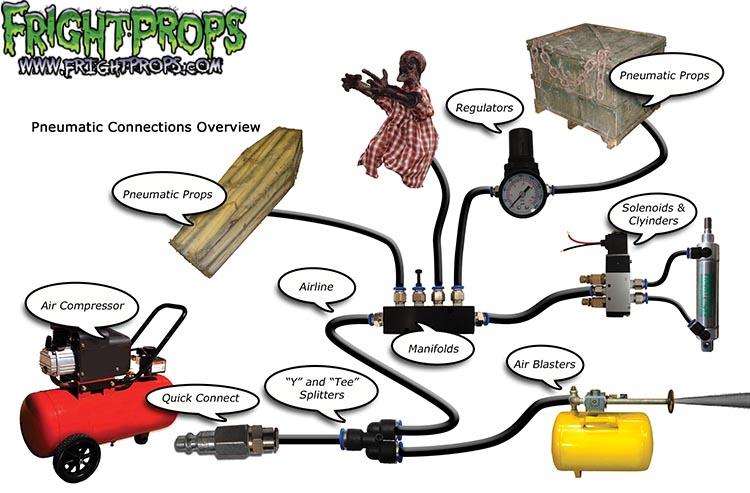

This diagram illustrates the basics of how a pneumatic system could be layed out.

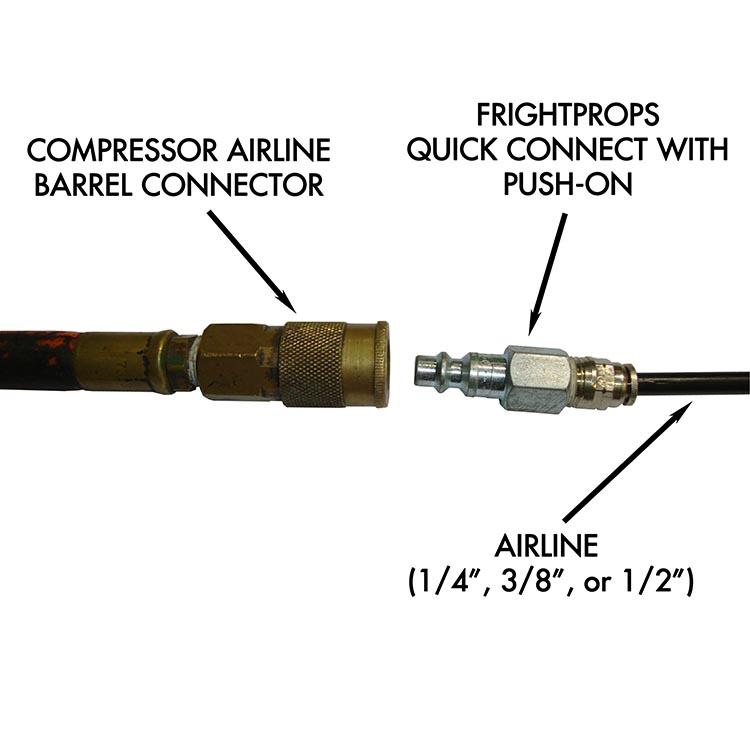

Compressors usually have a quick connect barrel to hook airline to. You need to convert that style to a push-on type. Use a "Quick Connect with Push-On" to do that...
Then you can use y's, tee's and unions to split off to your props....
![]() |
![]() |
![]() |
![]() |
The props each need a push-on style fitting too...
![]() |
![]() |
Then you can use polyethylene or polyurethane airline that pushes into the fittings:..
