QUICK REFERENCE: FrightProps Stainless Steel Cylinder THREAD & HOLE SIZES

Bore Size Mounting Nut Clevis Rear Pivot Hole Air Port Size
5/16 3/8-24 #5-40 .12 #10-32
7/16 7/16-20 #10-32 .15 #10-32
9/16 7/16-20 #10-32 .15 #10-32
3/4 5/8-18 1/4-28 .25 1/8 NPT
7/8 5/8-18 1/4-28 .25 1/8 NPT
1-1/6 5/8-18 5/16-24 .25 1/8 NPT
1-1/4 3/4-16 7/16-20 .25 1/8 NPT
1-1/2 3/4-16 7/16-20 .37 1/8 NPT
1-3/4 1-14 1/2-20 .37 1/4 NPT
2 1 1/4-12 1/2-20 .37 1/4 NPT
3 1 1/2-12 5/8-18 .5 3/8 NPT


Maximum psi for all cylinders is 250psi.

DETAILED TECHNICAL DRAWINGS / SPECIFICATIONS

The following tables contain links to cylinder dimensional drawings.  This diagram illustrates how to determine overall cylinder length from the dimensional drawings.

Determining Cylinder Stroke Length



Double Acting / Universal Mount

Part Number

Bore Size

Specifications

Order

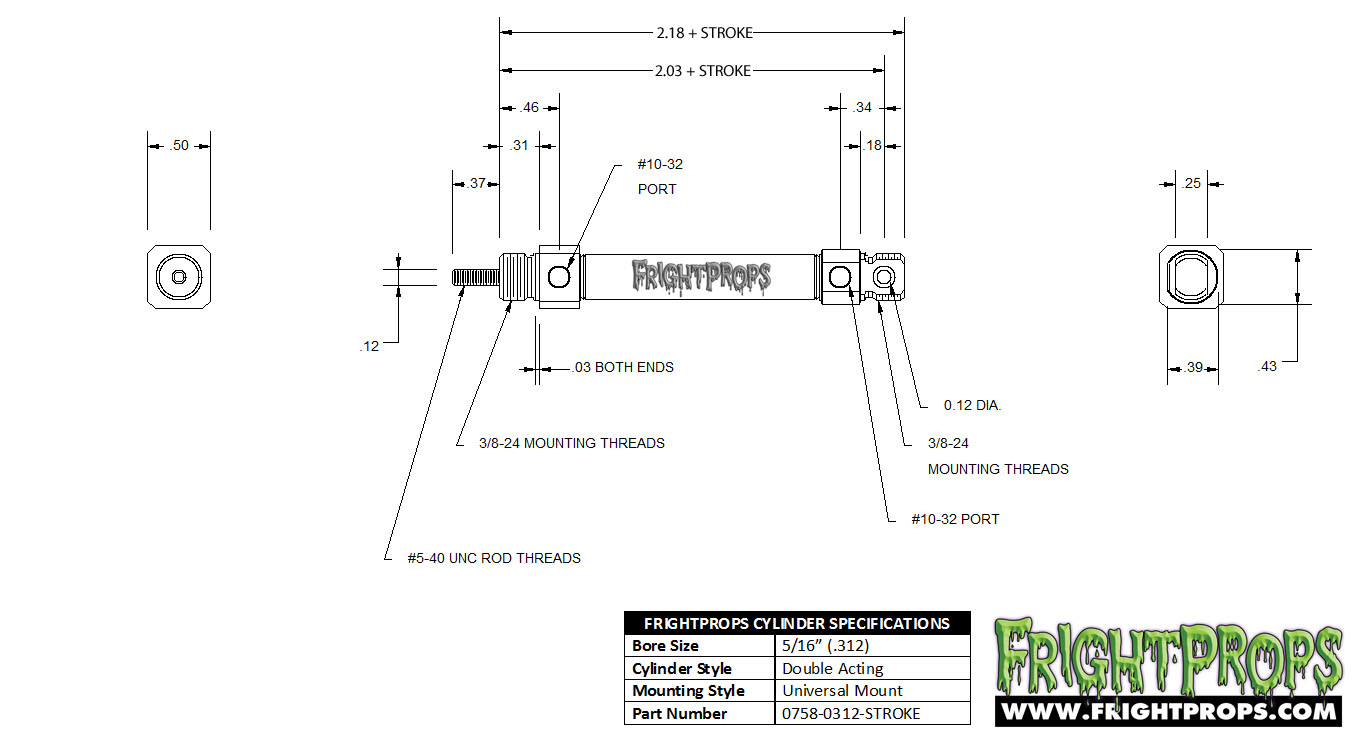

0758-0312-STROKE

5/16” (.312)

Specifications

Order

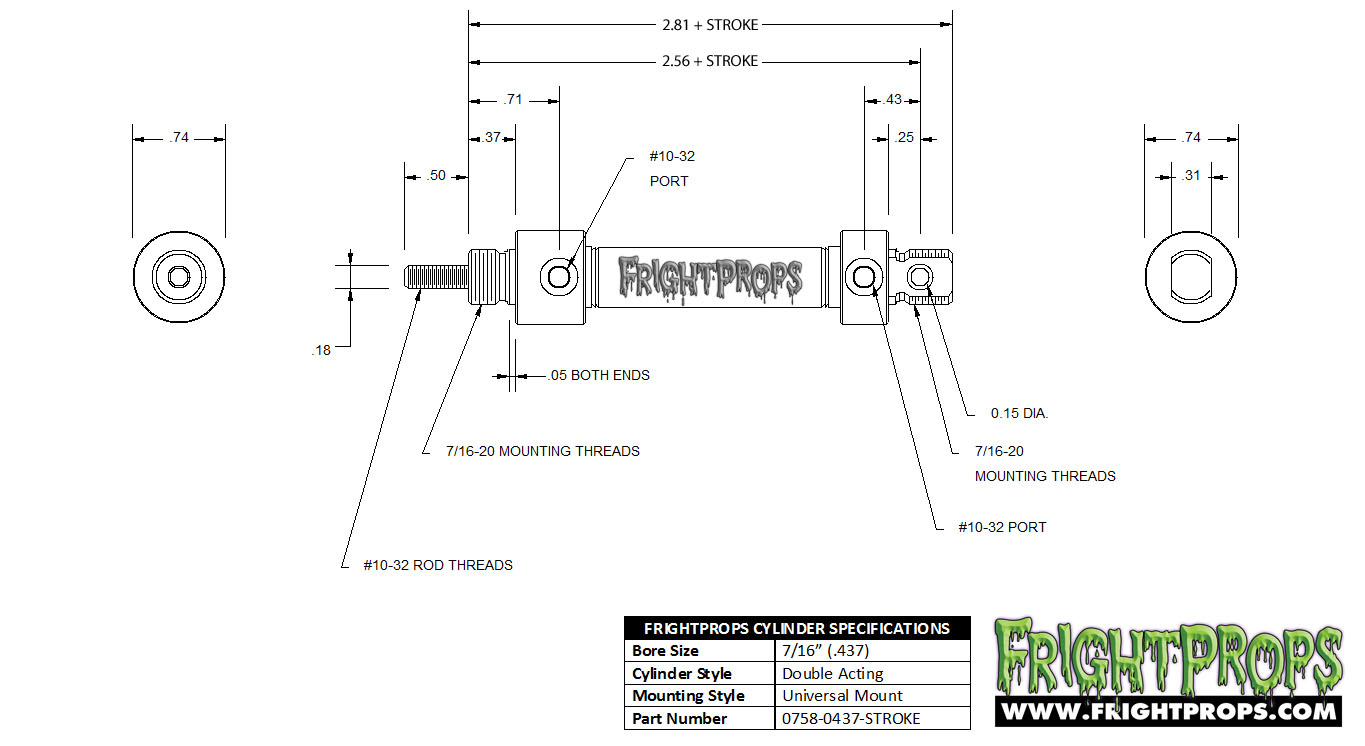

0758-0437-STROKE

7/16” (.437)

Specifications

Order

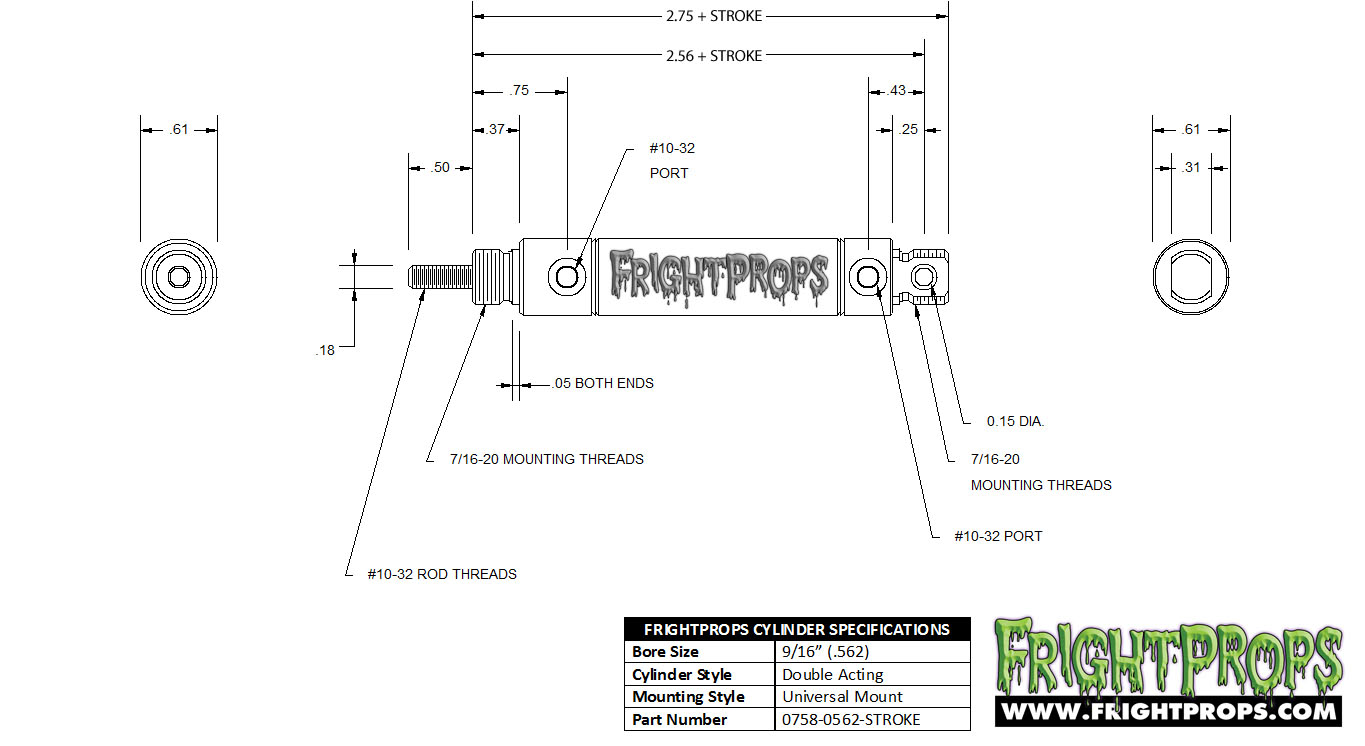

0758-0562-STROKE

9/16” (.562)

Specifications

Order

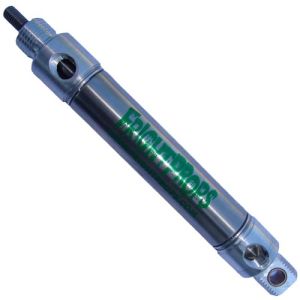

0758-0750-STROKE

3/4" (.750)

Specifications

Order

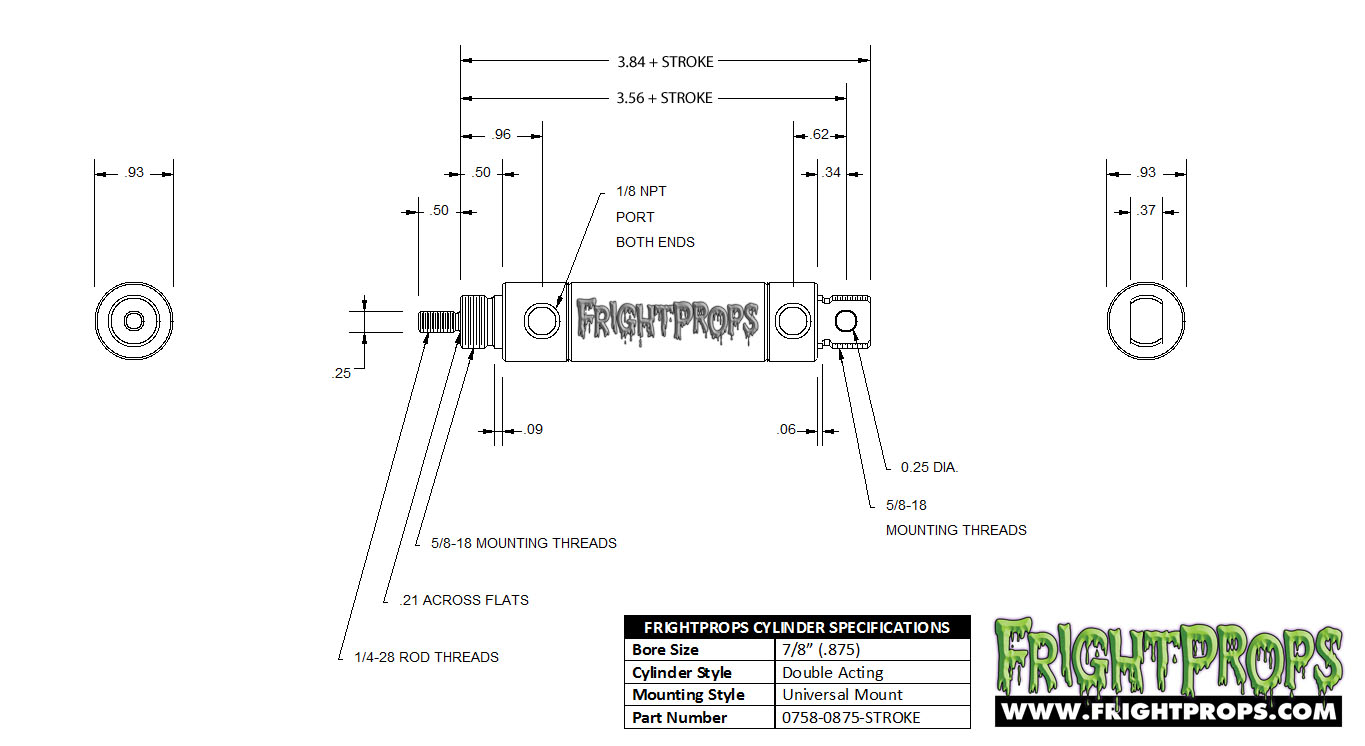

0758-0875-STROKE

7/8” (.875)

Specifications

Order

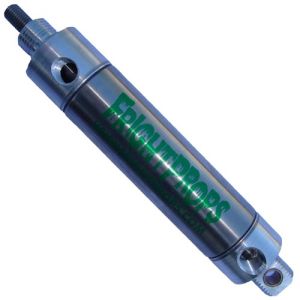

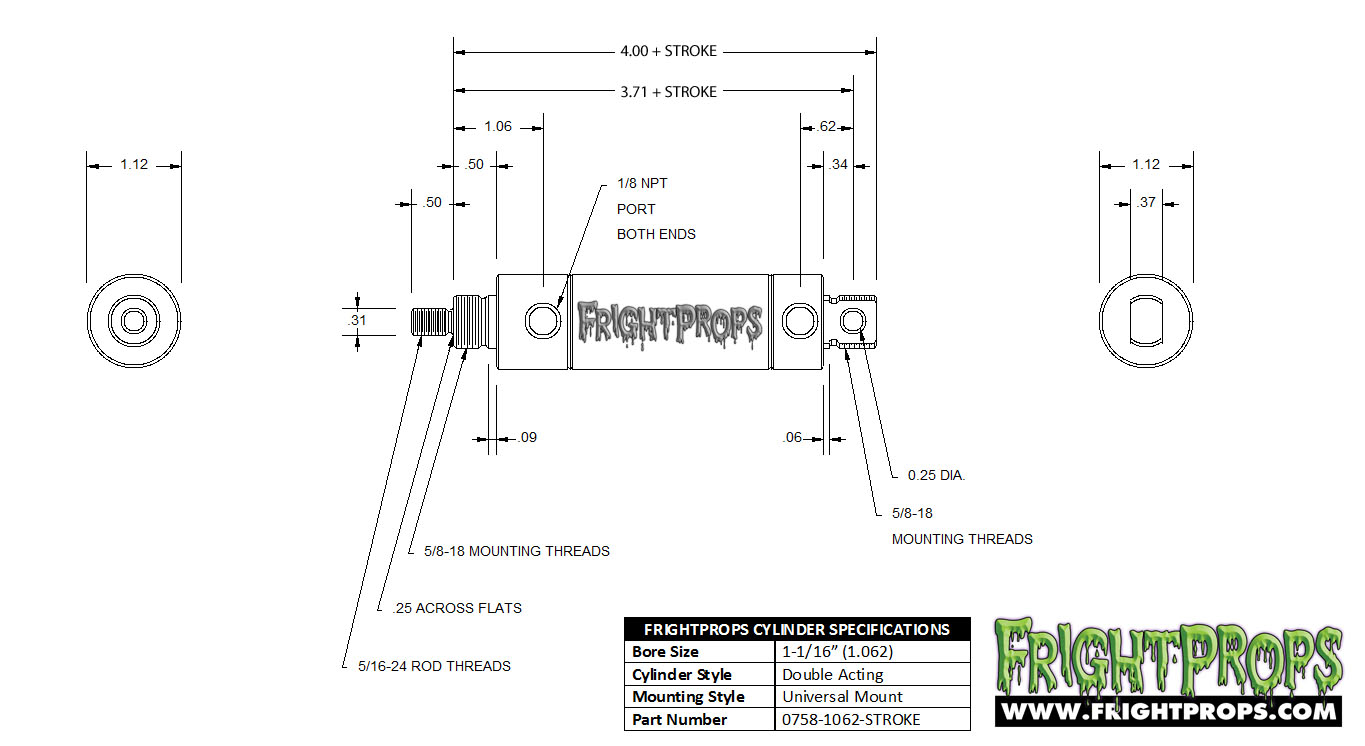

0758-1062-STROKE

1-1/16” (1.062)

Specifications

Order

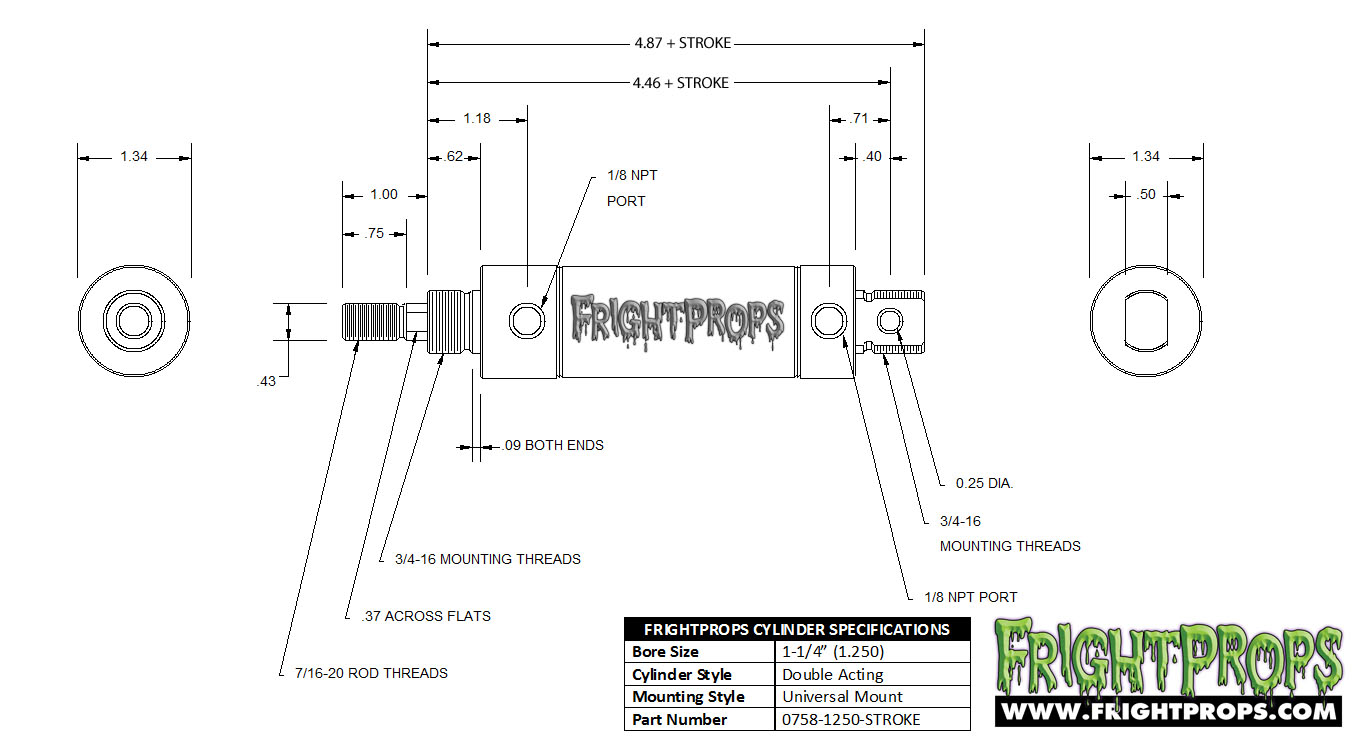

0758-1250-STROKE

1-1/4” (1.250)

Specifications

Order

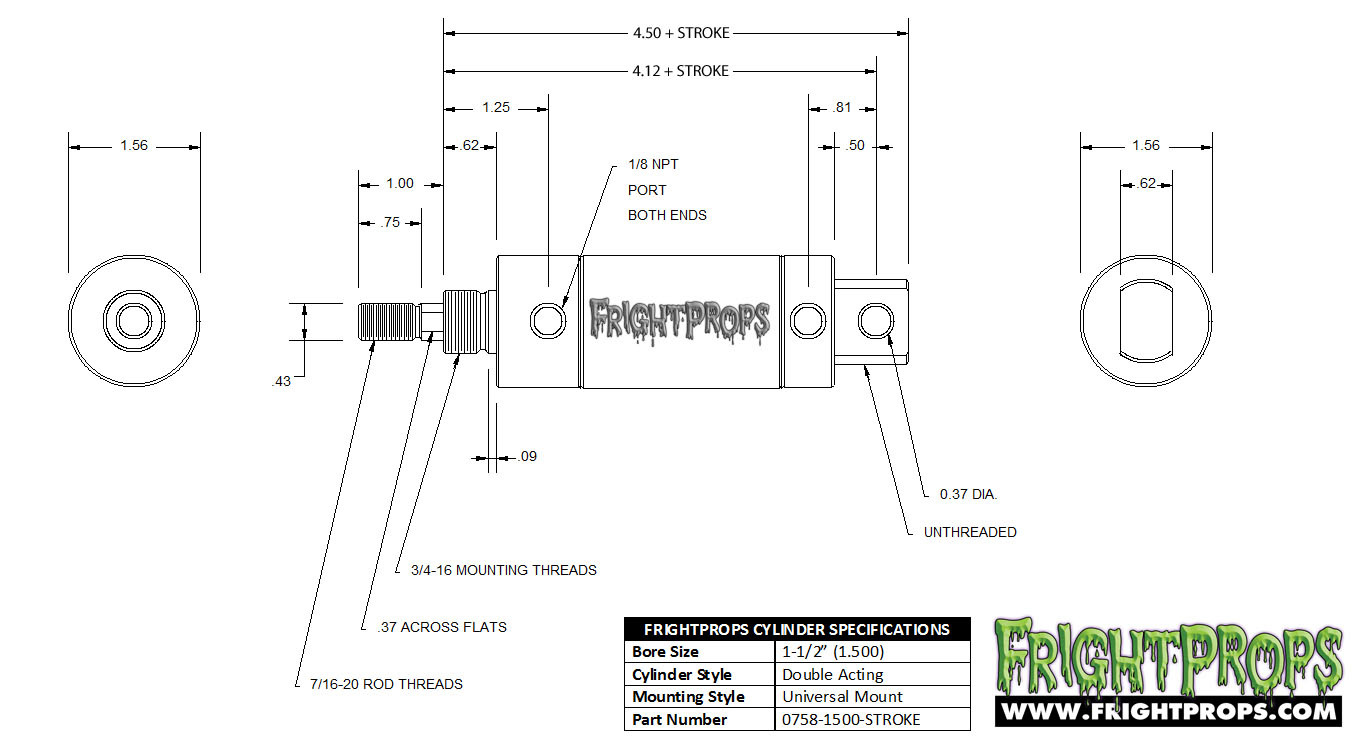

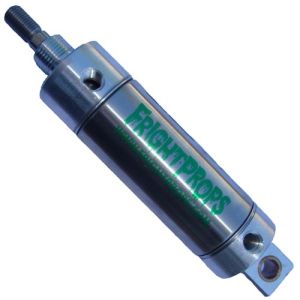

0758-1500-STROKE

1-1/2” (1.500)

Specifications

Order

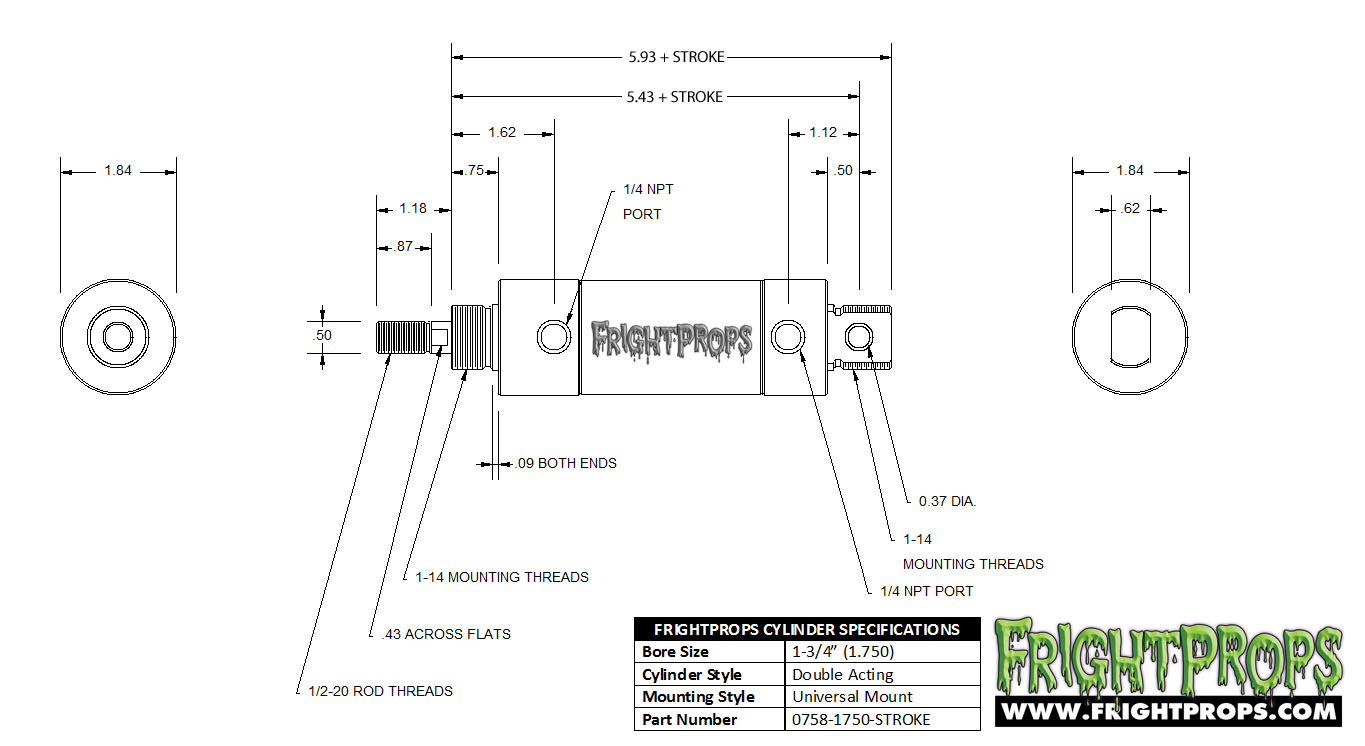

0758-1750-STROKE

1-3/4” (1.750)

Specifications

Order

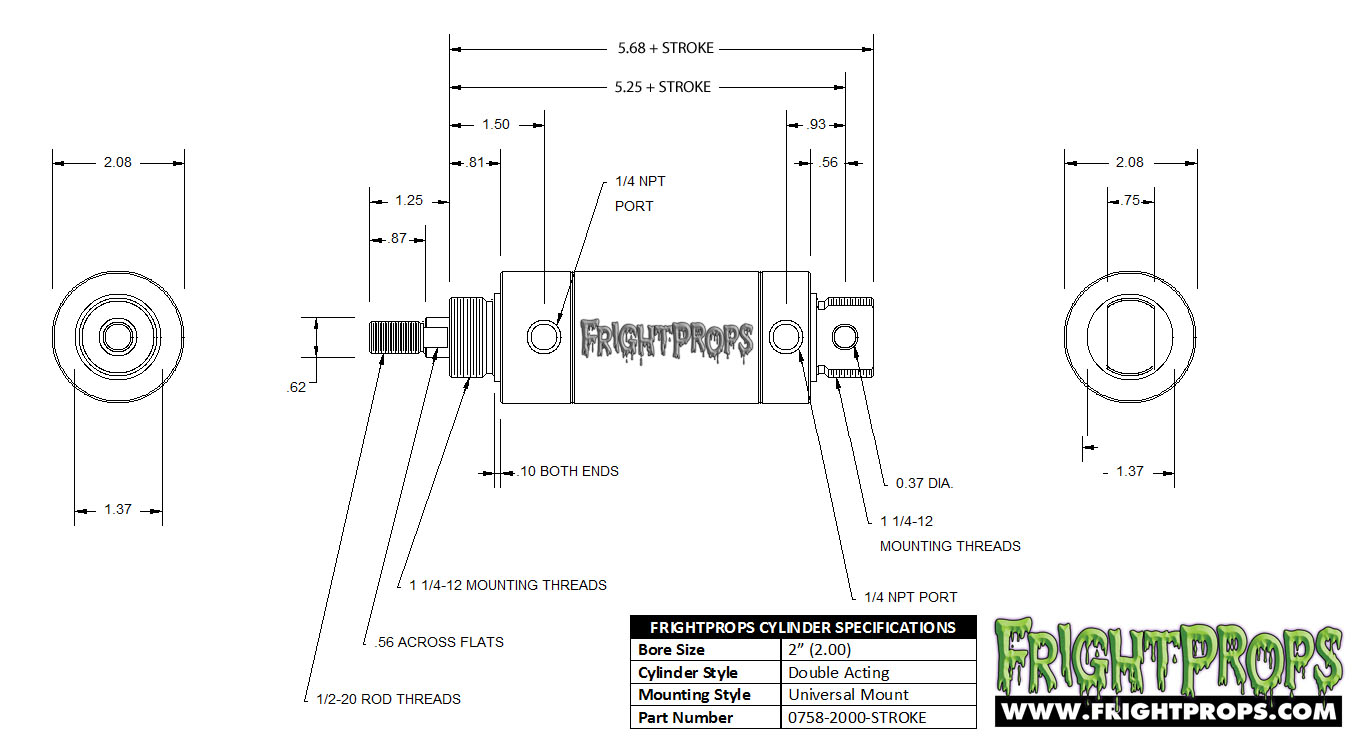

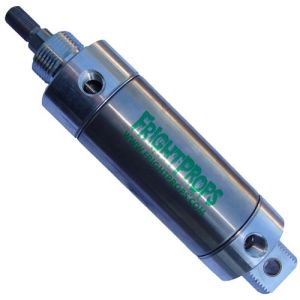

0758-2000-STROKE

2” (2.000)

Specifications

Order

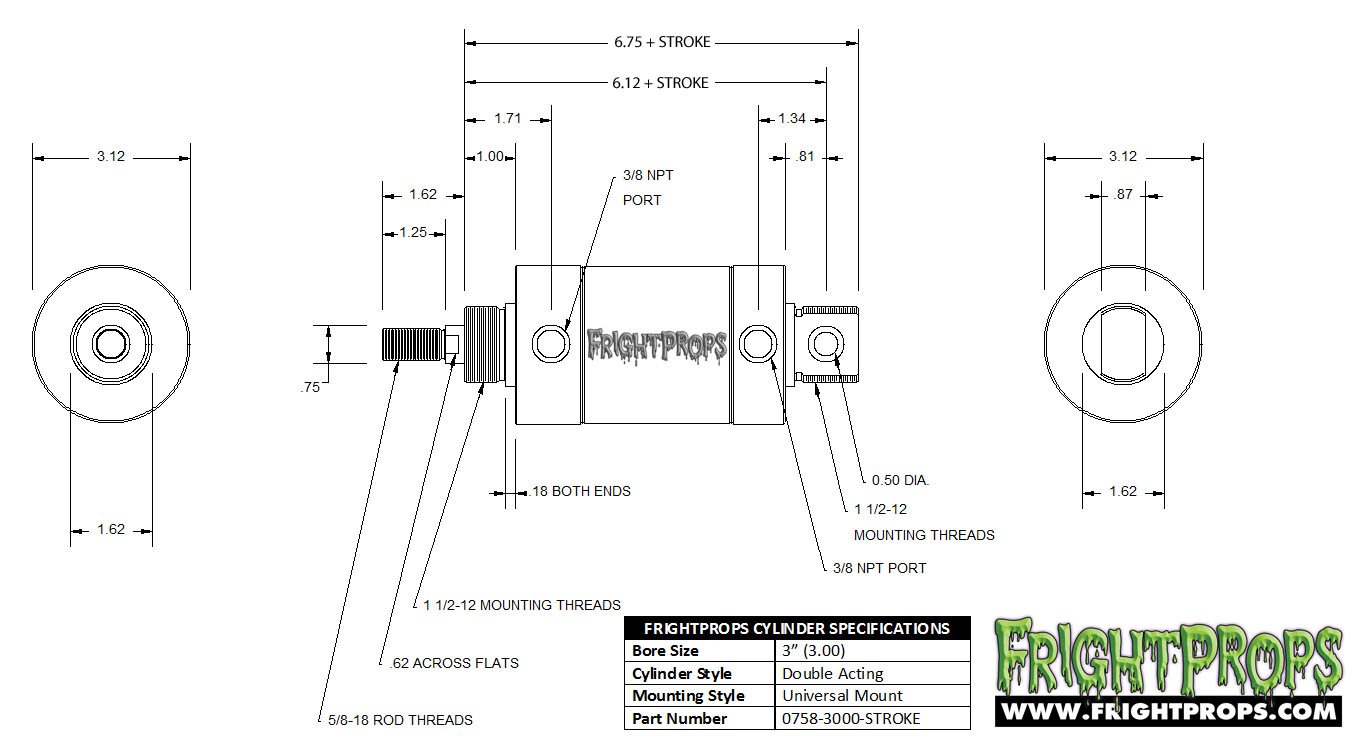

0758-3000-STROKE

3” (3.000)

Specifications

Order



Double Acting / Nose Mount

Part Number

Bore Size

Specifications

Order

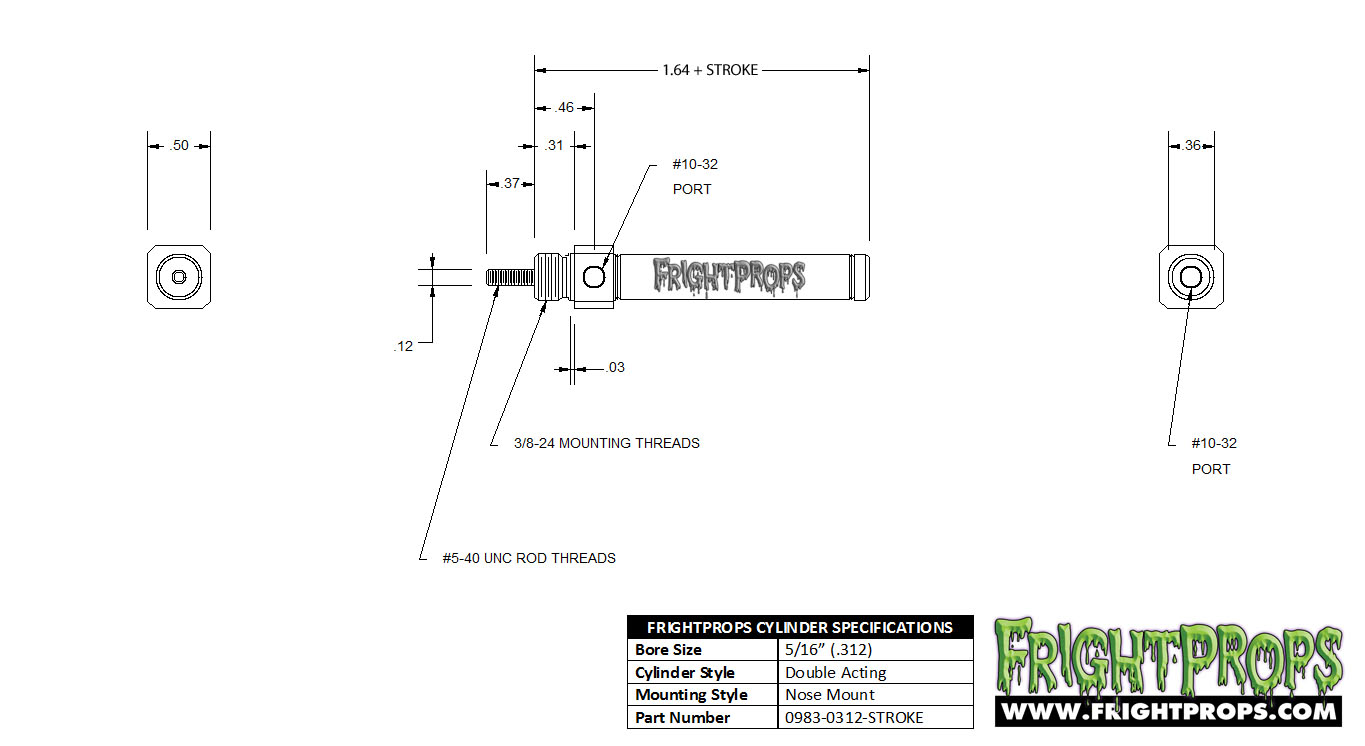

0983-0312-STROKE

5/16” (.312)

Specifications

Order

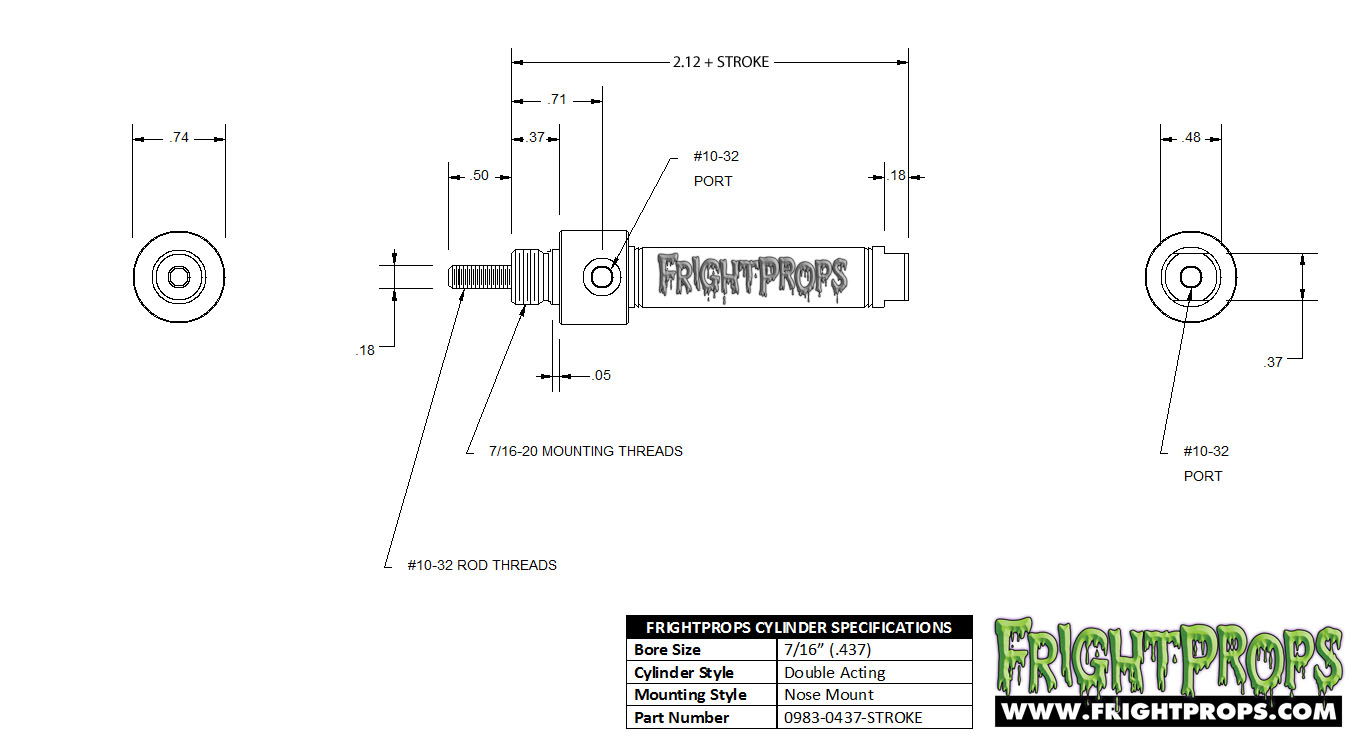

0983-0437-STROKE

7/16” (.437)

Specifications

Order

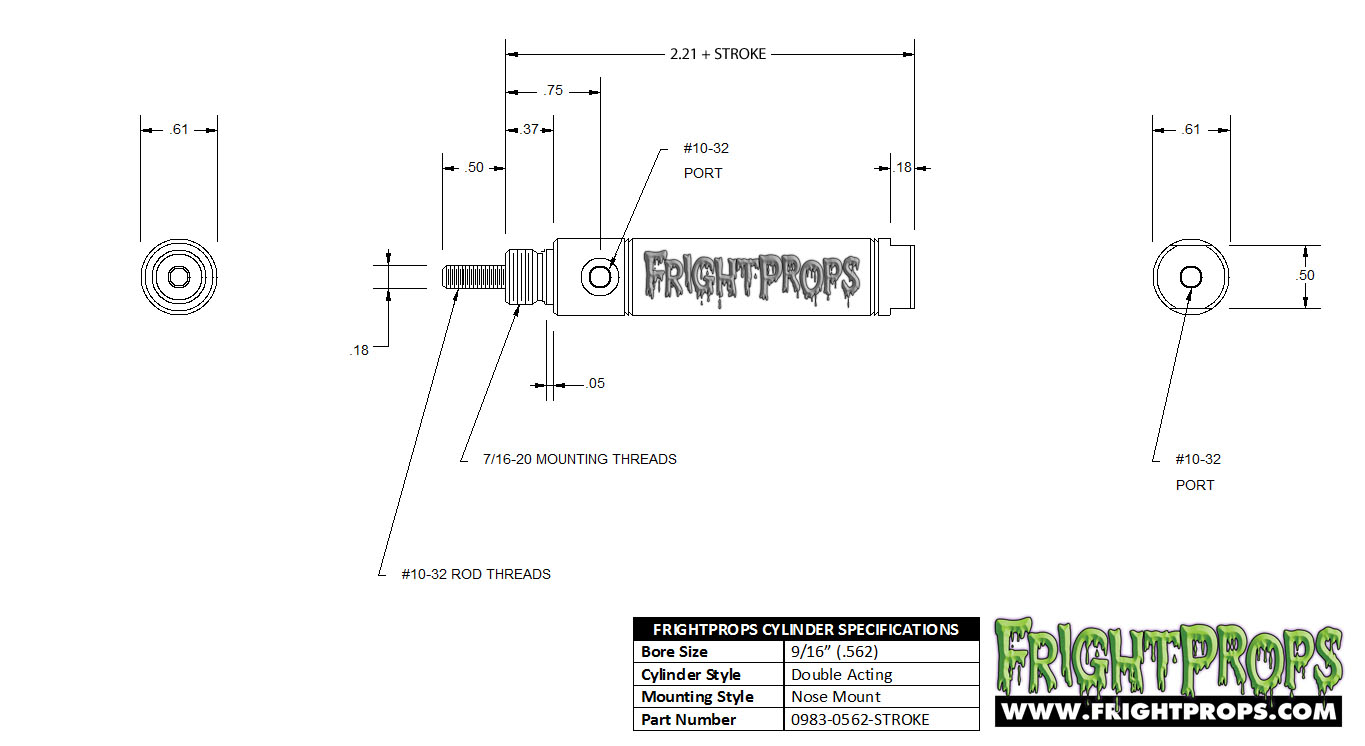

0983-0562-STROKE

9/16” (.562)

Specifications

Order

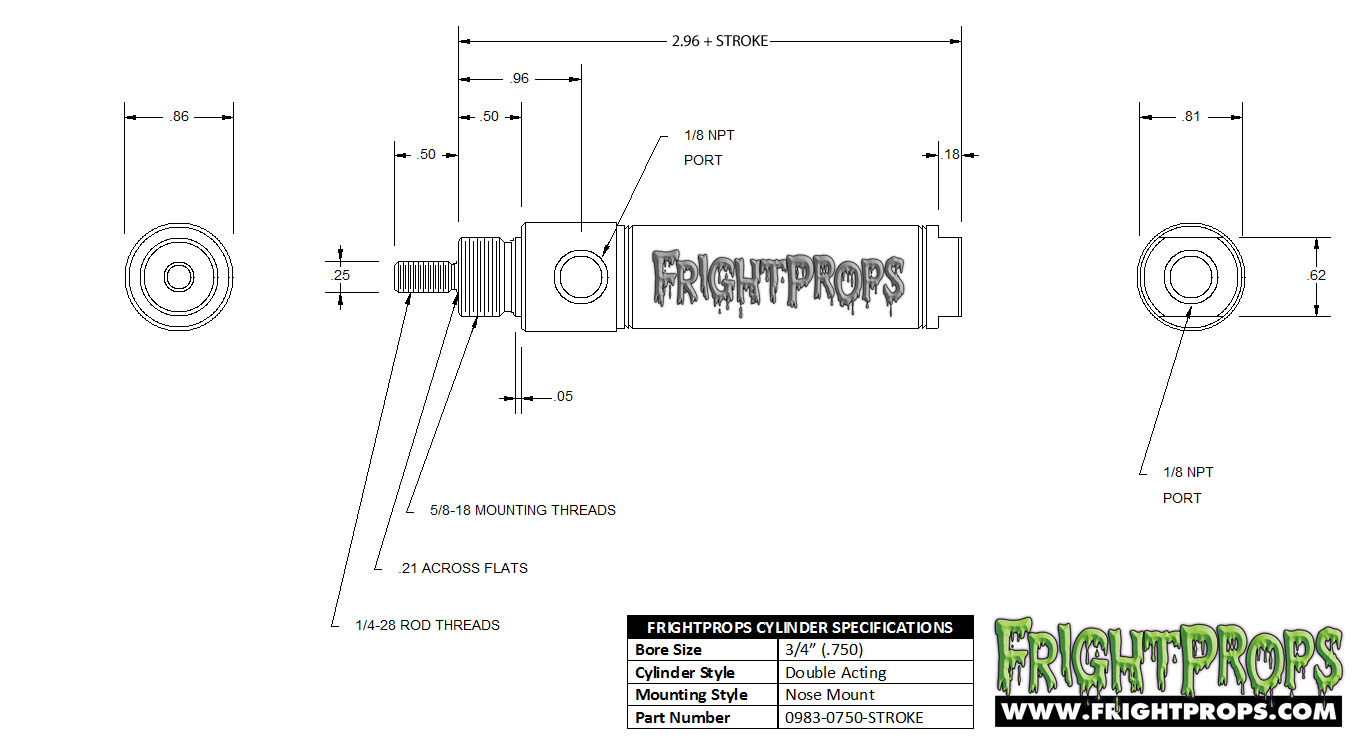

0983-0750-STROKE

3/4" (.750)

Specifications

Order

0983-0875-STROKE

7/8” (.875)

Specifications

Order

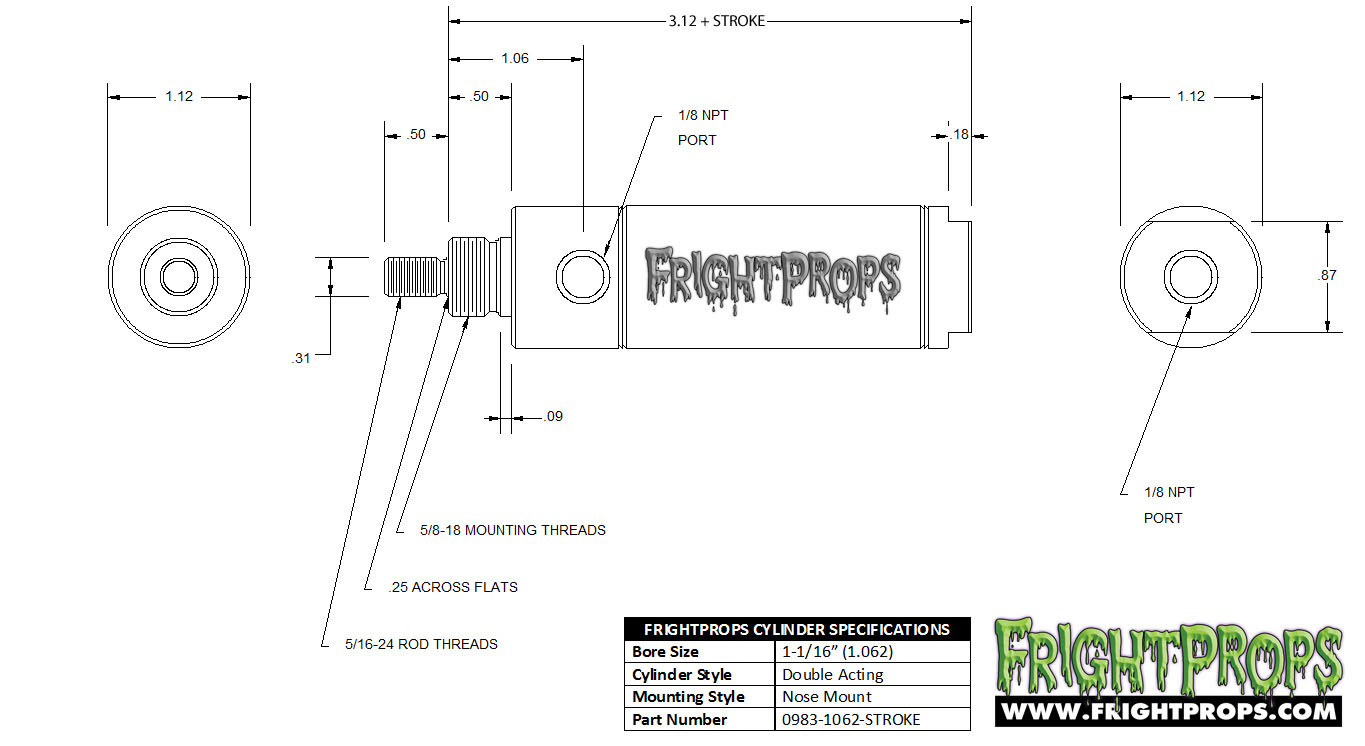

0983-1062-STROKE

1-1/16” (1.062)

Specifications

Order

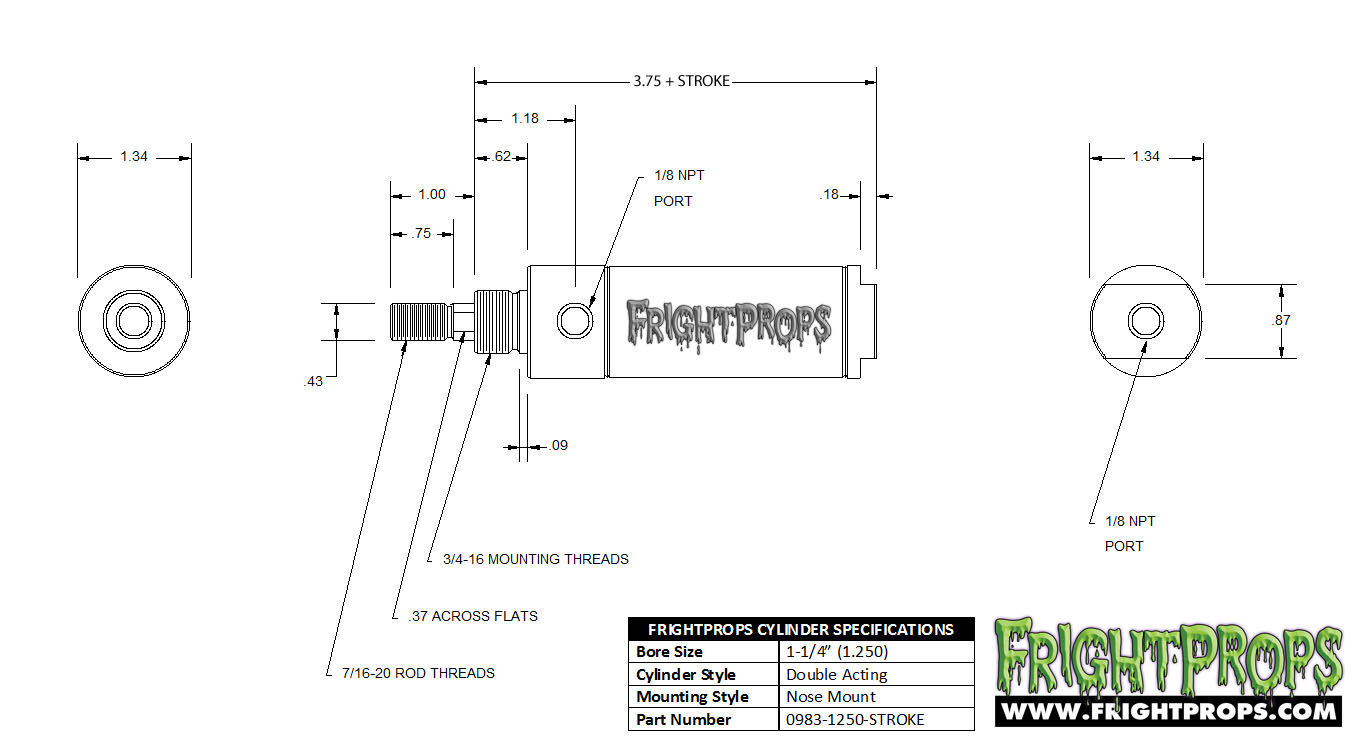

0983-1250-STROKE

1-1/4” (1.250)

Specifications

Order

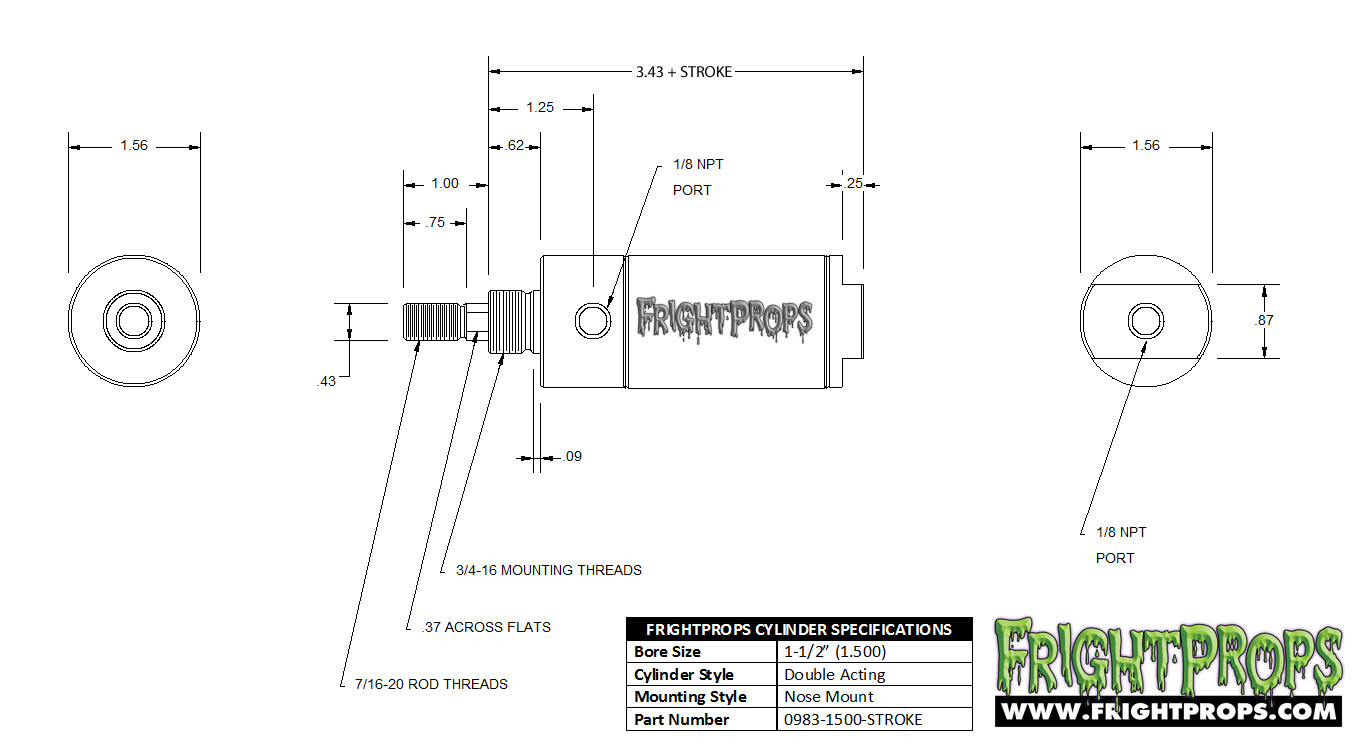

0983-1500-STROKE

1-1/2” (1.500)

Specifications

Order

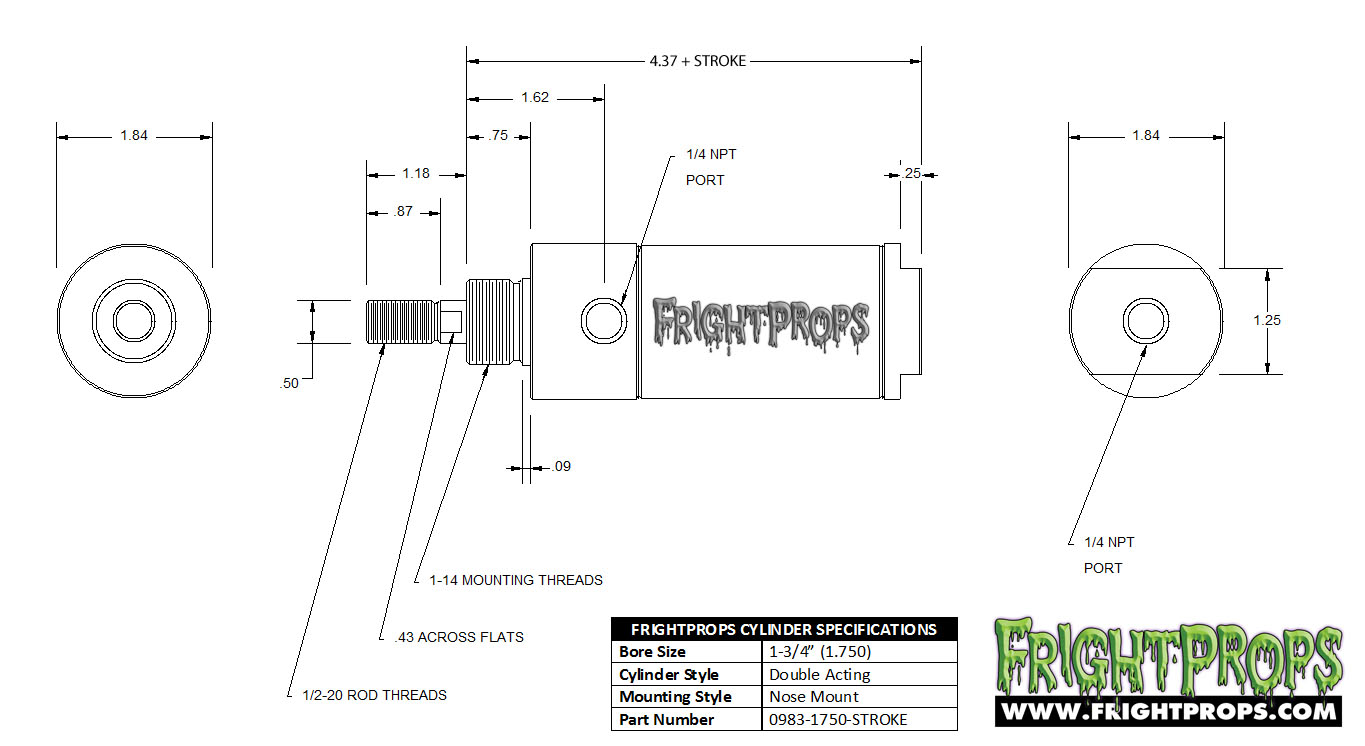

0983-1750-STROKE

1-3/4” (1.750)

Specifications

Order

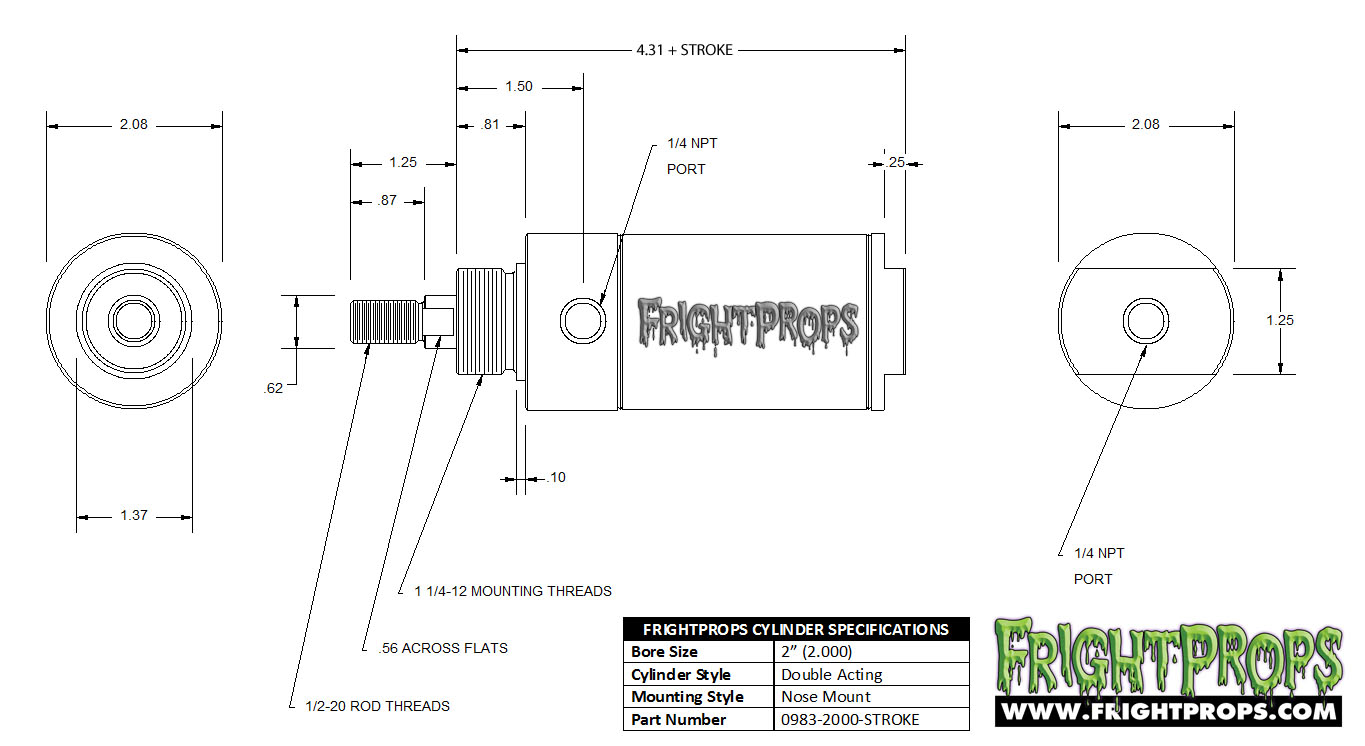

0983-2000-STROKE

2” (2.000)

Specifications

Order

0983 -3000-STROKE

3” (3.000)

Specifications

Order



Double-End Rod / Nose Mount

Part Number

Bore Size

Specifications

Order

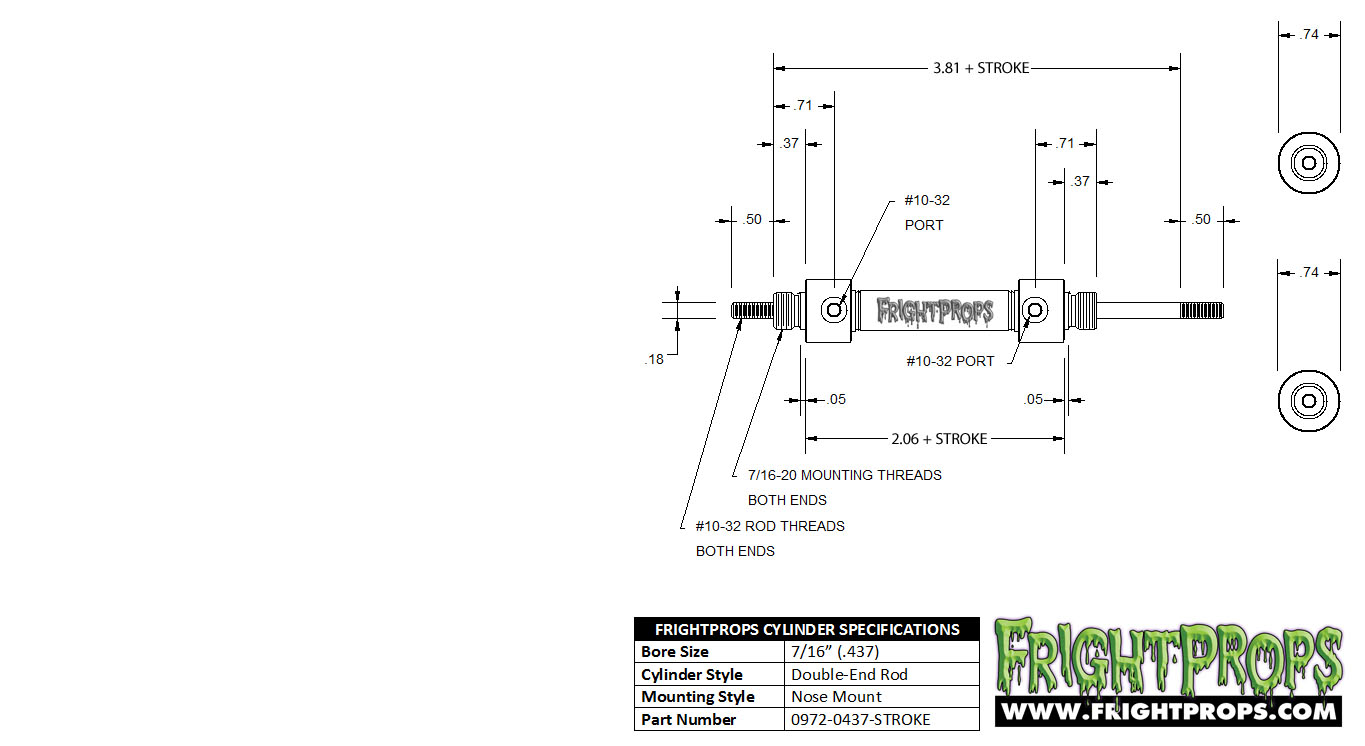

0972-0437-STROKE

7/16” (.437)

Specifications

Order

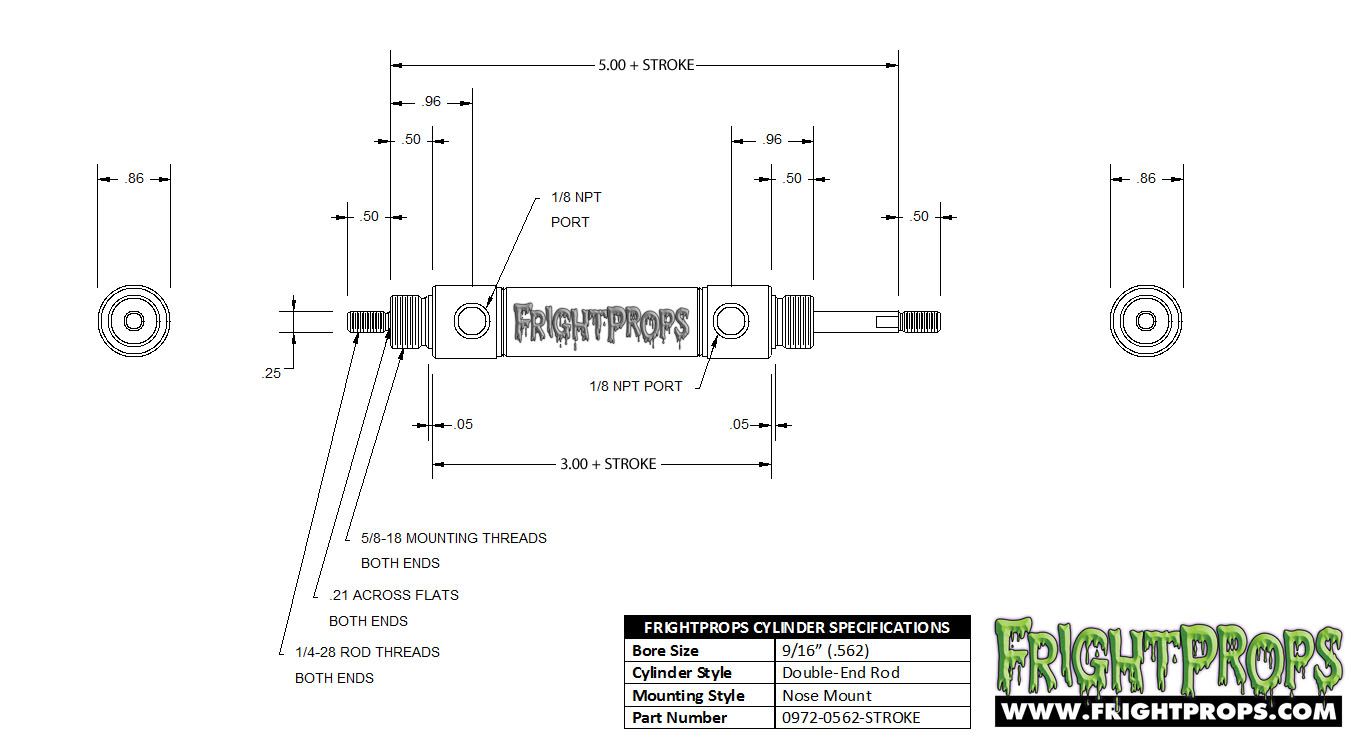

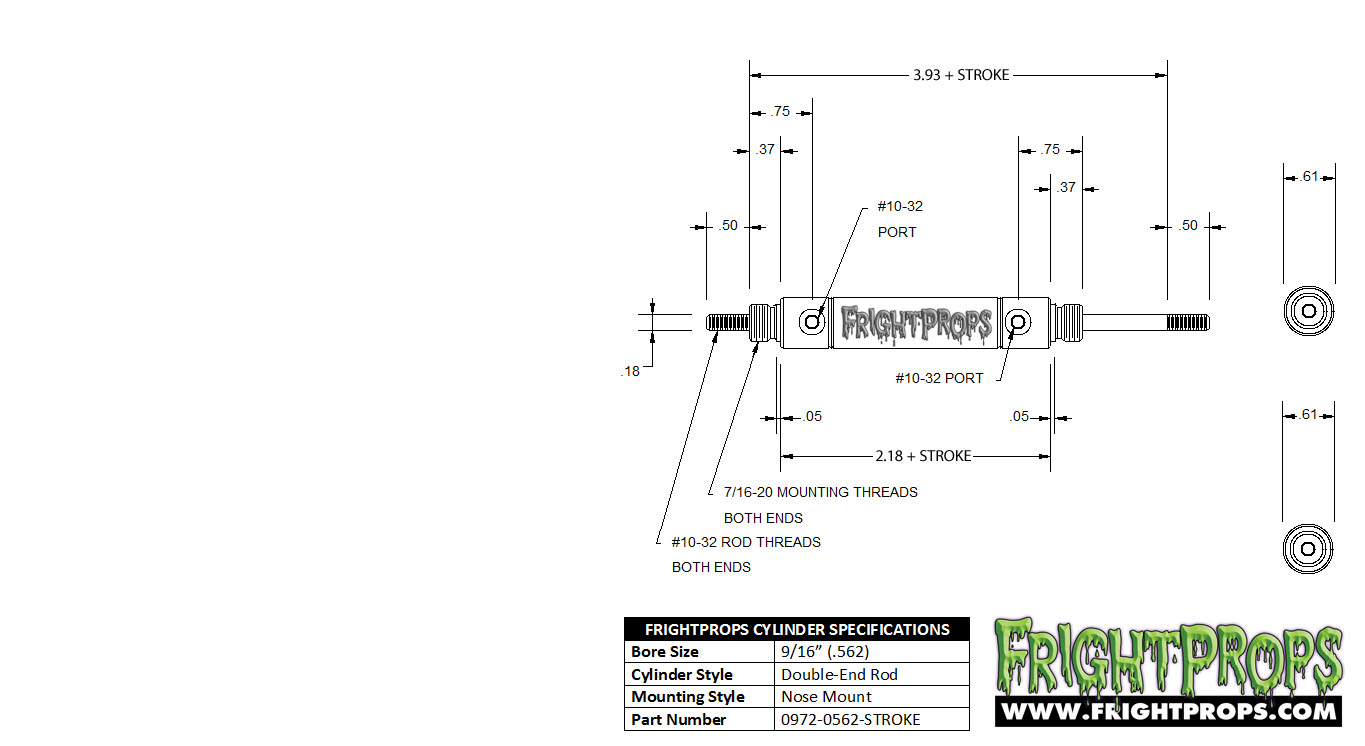

0972-0562-STROKE

9/16” (.562)

Specifications

Order

0972-0750-STROKE

3/4" (.750)

Specifications

Order

0972-0875-STROKE

7/8” (.875)

Specifications

Order

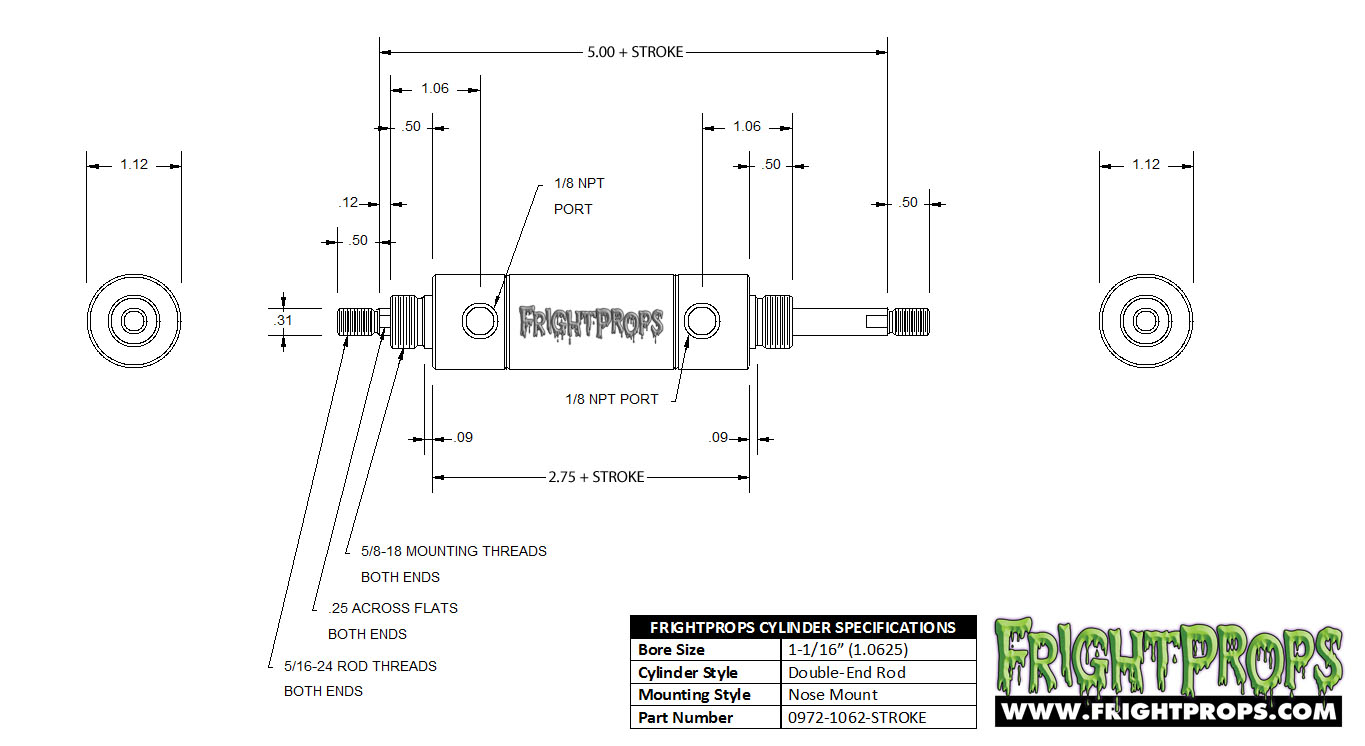

0972-1062-STROKE

1-1/16” (1.062)

Specifications

Order

0972-1250-STROKE

1-1/4” (1.250)

Specifications

Order

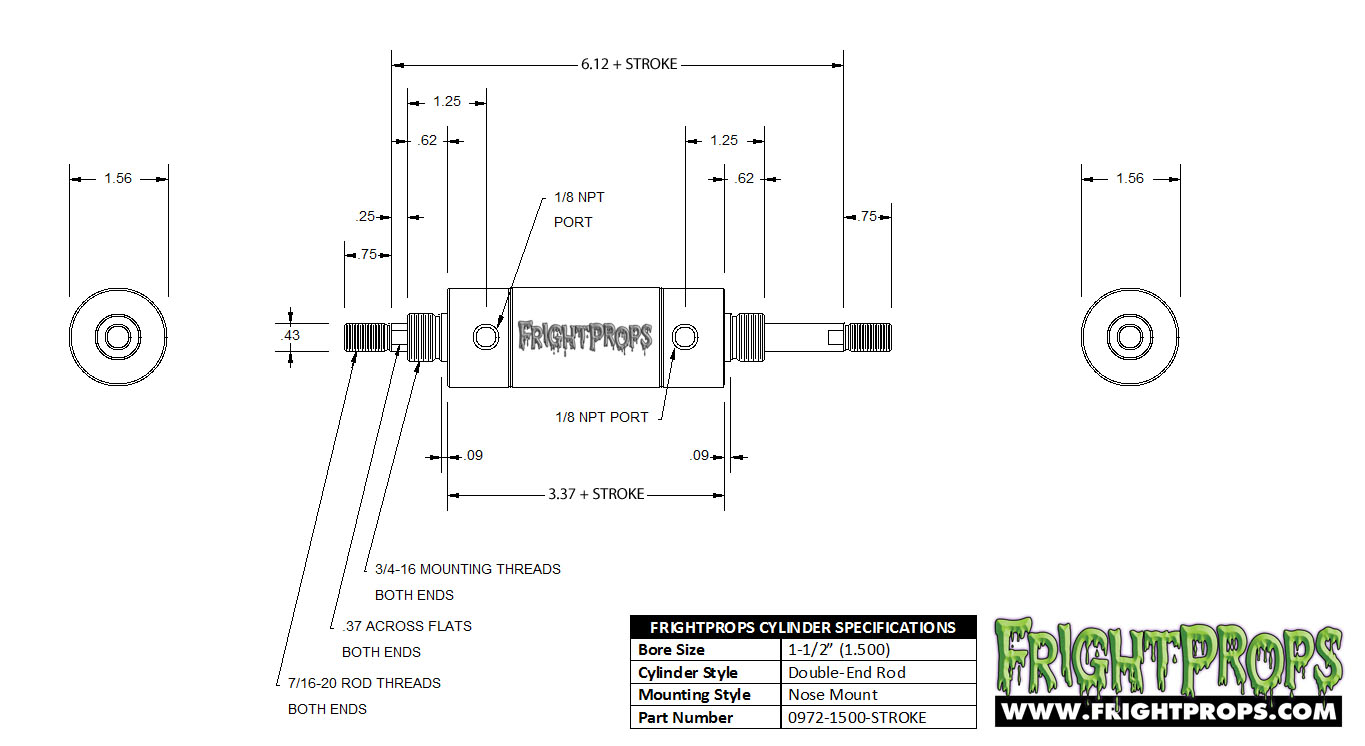

0972-1500-STROKE

1-1/2” (1.500)

Specifications

Order

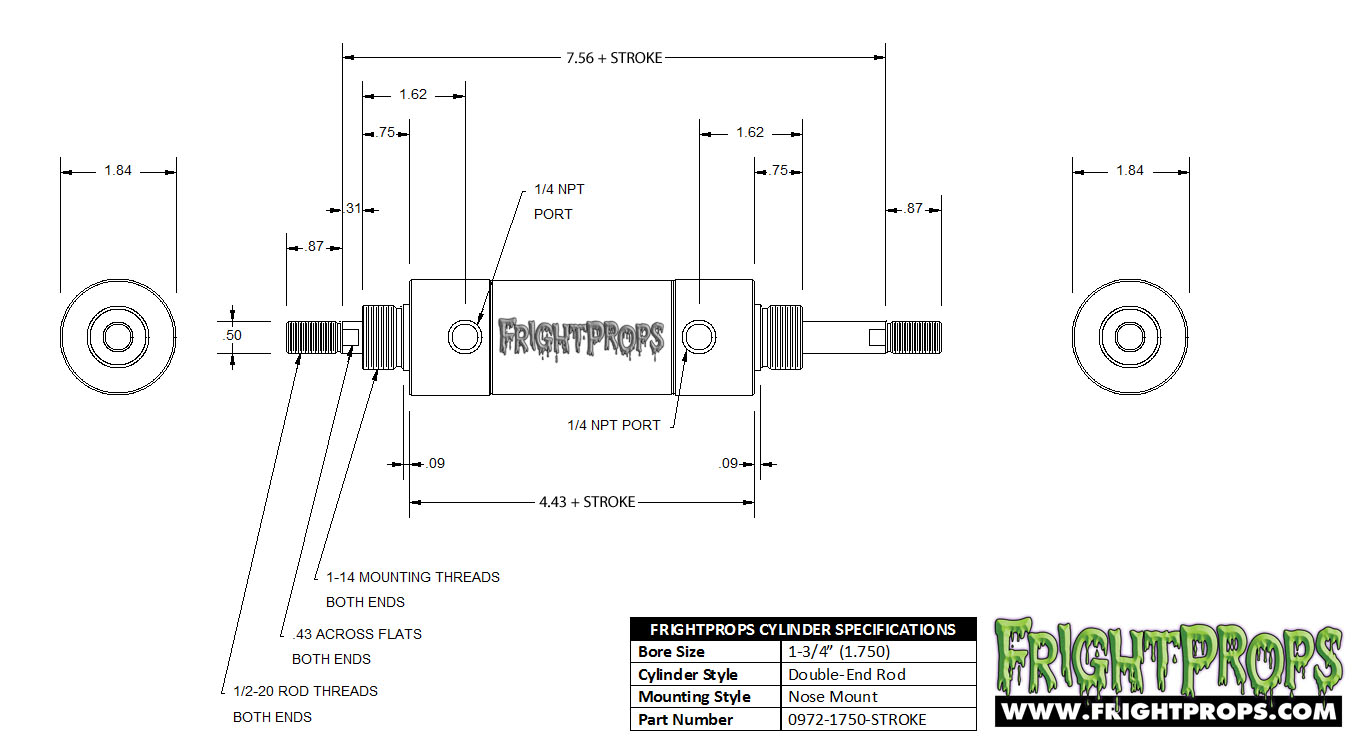

0972-1750-STROKE

1-3/4” (1.750)

Specifications

Order

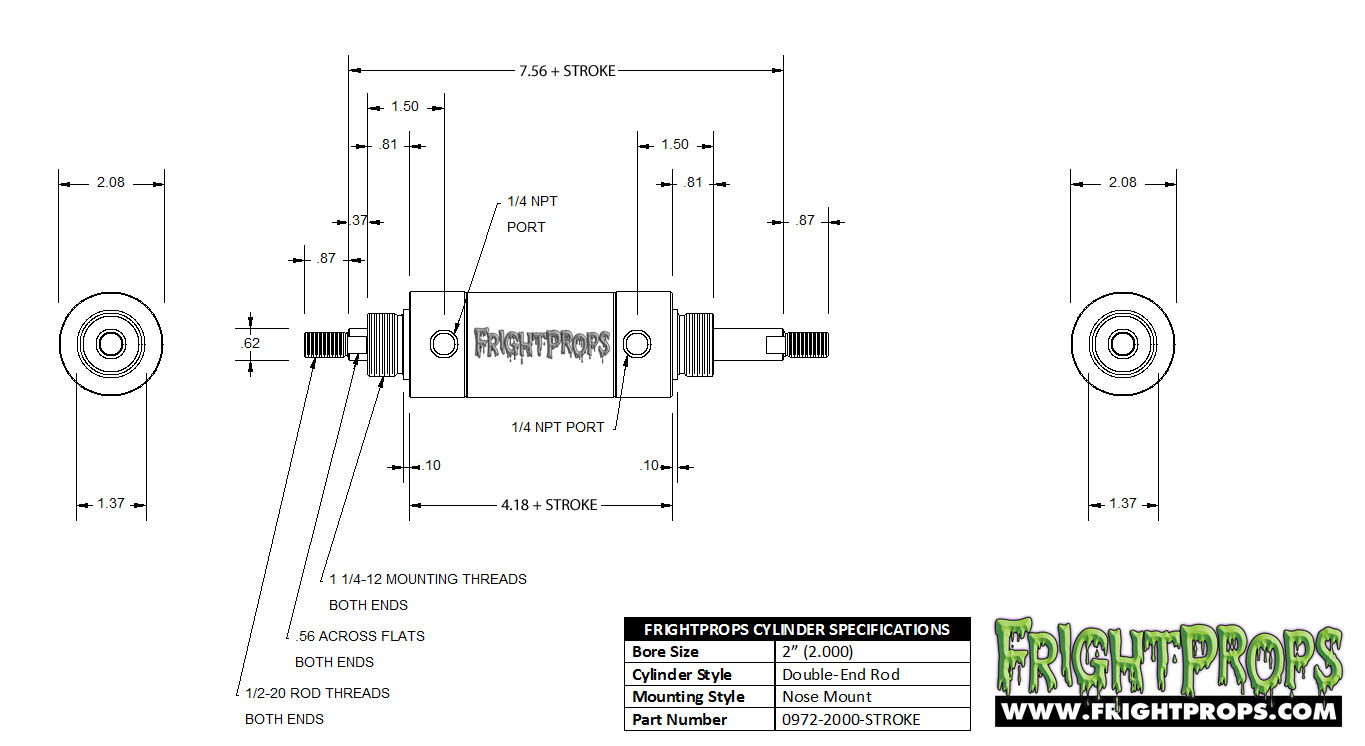

0972-2000-STROKE

2” (2.000)

Specifications

Order

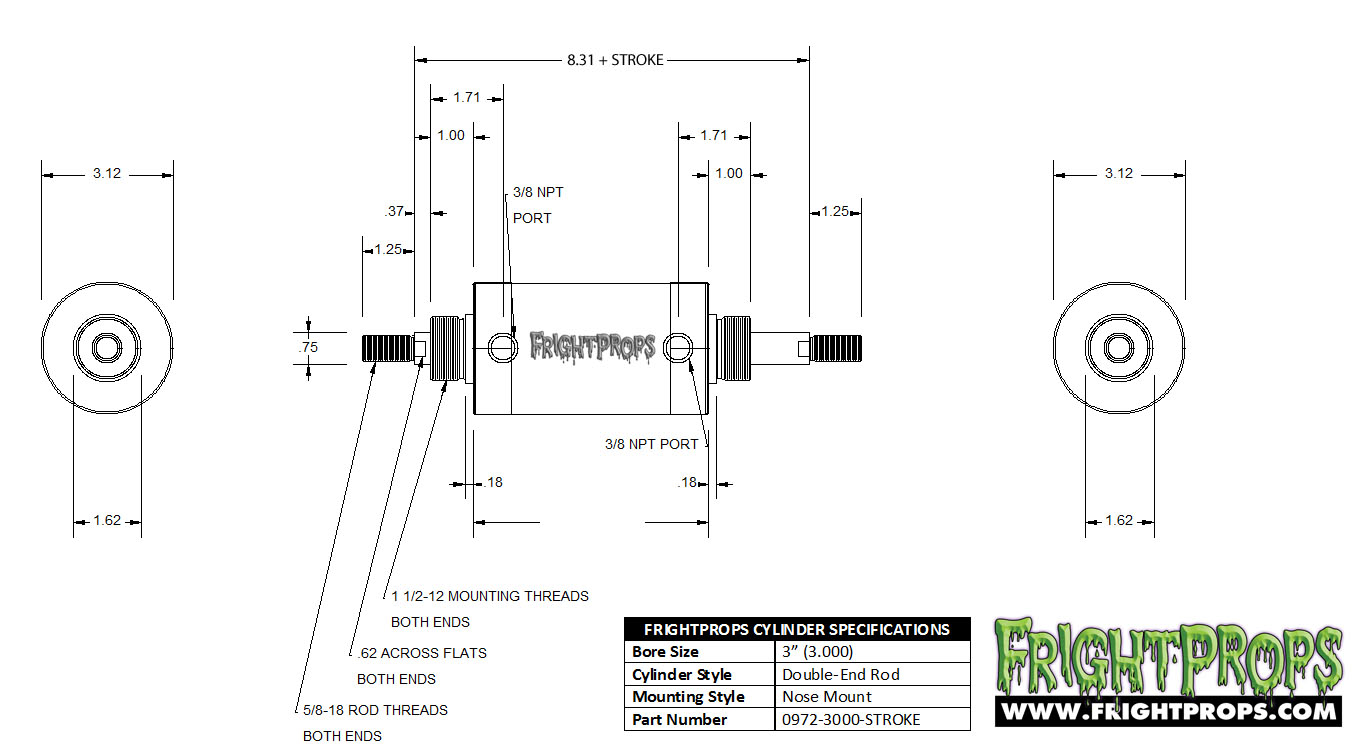

0972-3000-STROKE

3” (3.000)

Specifications

Order
