USING THE PICOBOO TO TURN A MOTOR ON AND OFF

  • This method requires a 12vDC motor that does not draw more than 5amps.
  • To program press REC on the PicoBoo.  Press output button 1 to make the motor turn on.  Press REC when done recording.
  • This data applies to all of our controllers that contain relays.

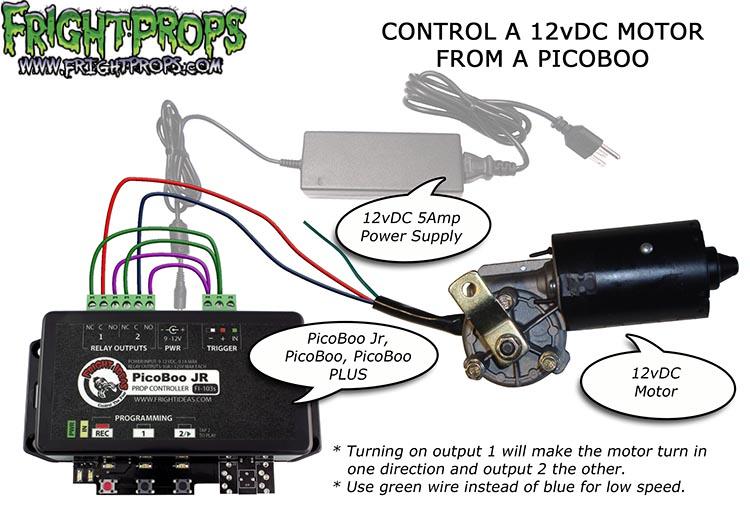

USING THE PICOBOO TO CONTROL MOTOR DIRECTION

  • This method requires a 12vDC motor that does not draw more than 5amps.
  • To program press REC on the PicoBoo.  Press output button 1 to make the motor turn one direction and button 2 to make it turn the other direction.  Pressing both buttons will do nothing.  Press REC when done recording.
  • Wires shown in various colors only for clarity.  Any color may be used.
  • This data applies to all of our controllers that contain relays.

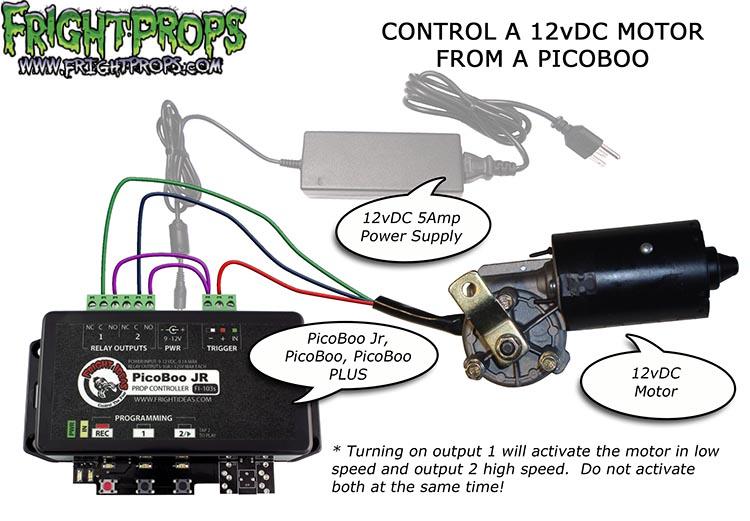

USING THE PICOBOO TO CONTROL MOTOR SPEED

  • This method requires a 12vDC motor that does not draw more than 5amps.
  • To program press REC on the PicoBoo.  Press output button 1 to make the motor move in slow speed and button 2 for high speed.  Do not press both buttons at the same time! Pressing both buttons will do nothing.  Press REC when done recording.
  • This data applies to all of our controllers that contain relays.

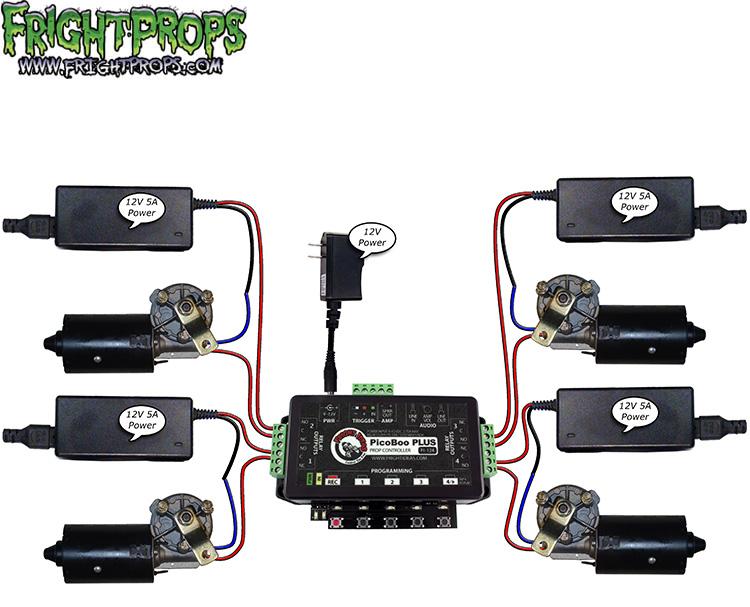

USING A PICOBOO PLUS TO TURN MULTIPLE MOTORS ON AND OFF

  • Running multiple motors requires a power supply for each motor.
  • This method requires 12vDC motors that do not draw more current than the power supplies can provide.
  • This data applies to all of our controllers that contain multiple relays.
