Please Note: The BrightSign LS422 has been discontinued and is no longer available. We now sell the BrightSign HD223 which does not require the input adapter shown in this document.

Activating the BrightSign LS422 Digital Video Player from a trigger (such as motion sensor) or controller requires the optional Input Adapter. The diagrams on this page illustrate how to wire into that adapter.

TRIGGERING FROM A RELAY OUTPUT

(All PicoBoos except PicoBoo One)

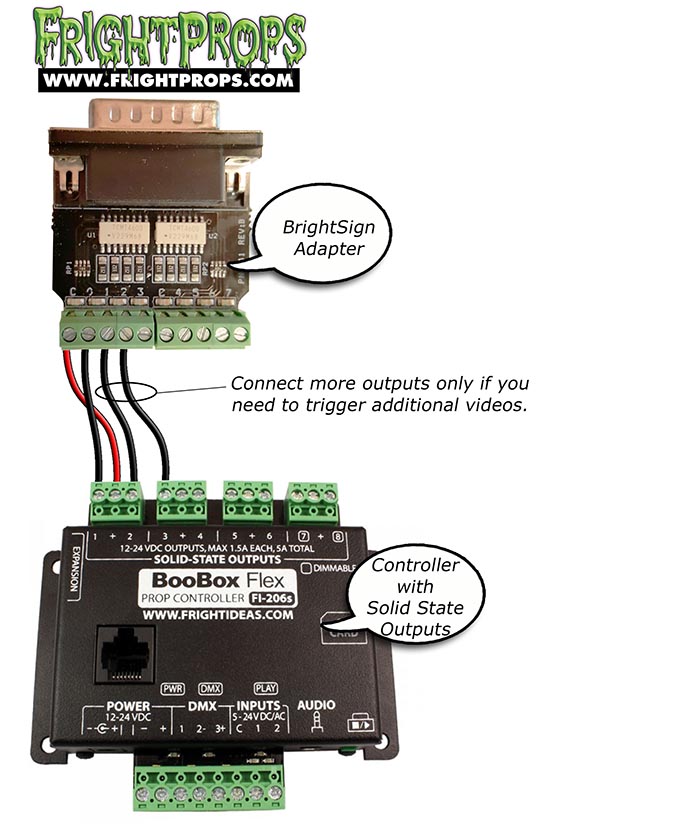

TRIGGERING FROM A SOLID STATE OUTPUT

(BooBox Flex / FlexMax / PicoBoo One)

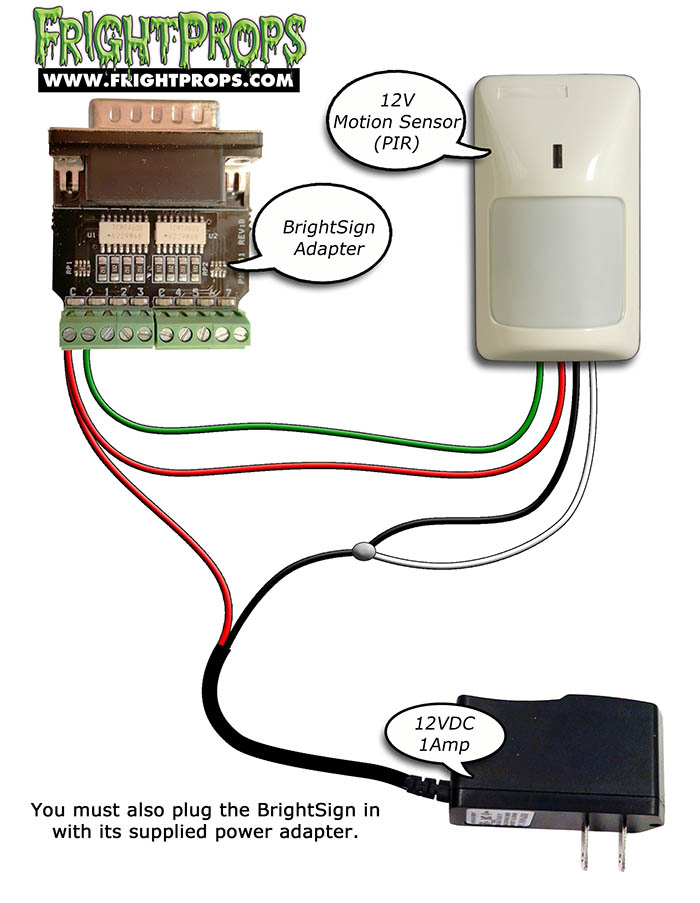

Motion Sensor (PIR)

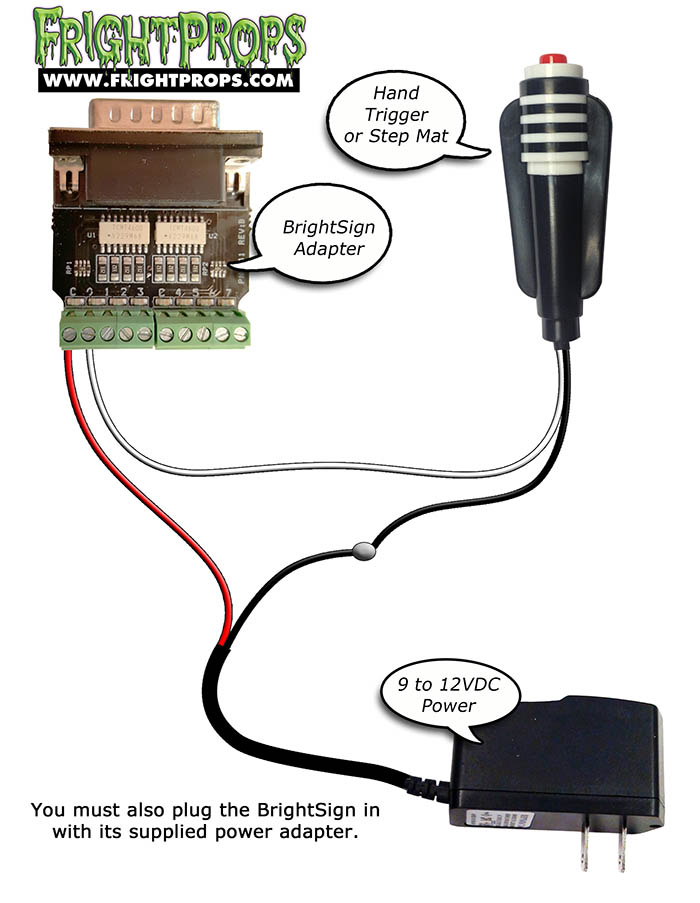

Hand Trigger or Step Mat

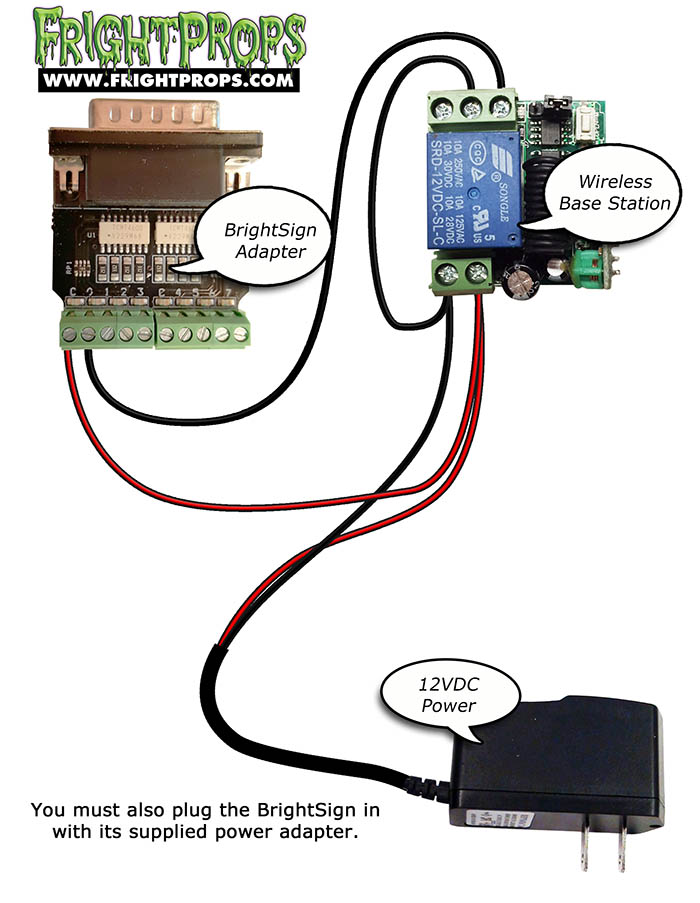

Wireless Trigger (1-Relay)

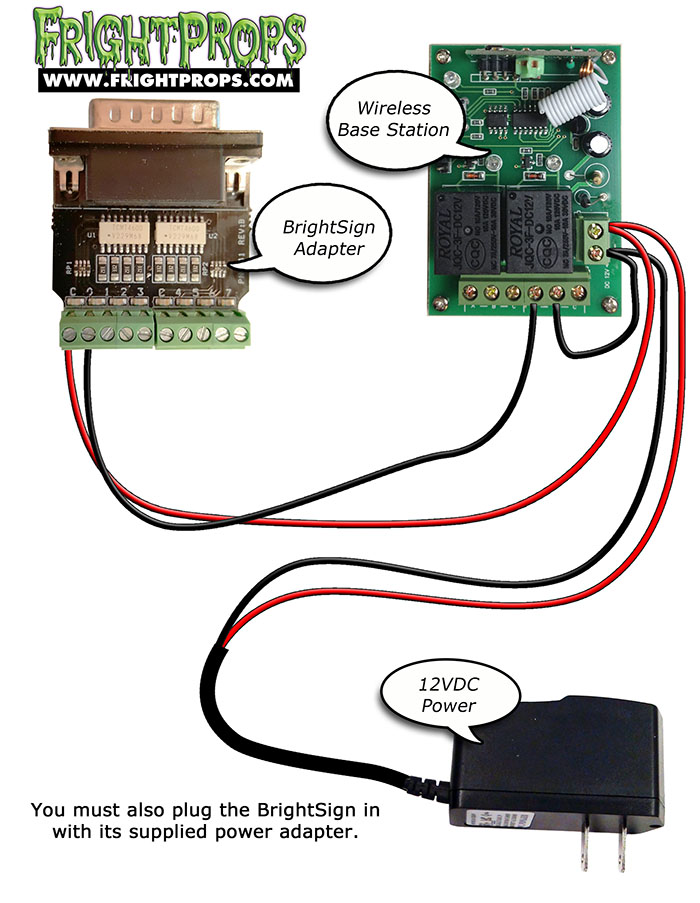

Wireless Trigger (4-Relay)

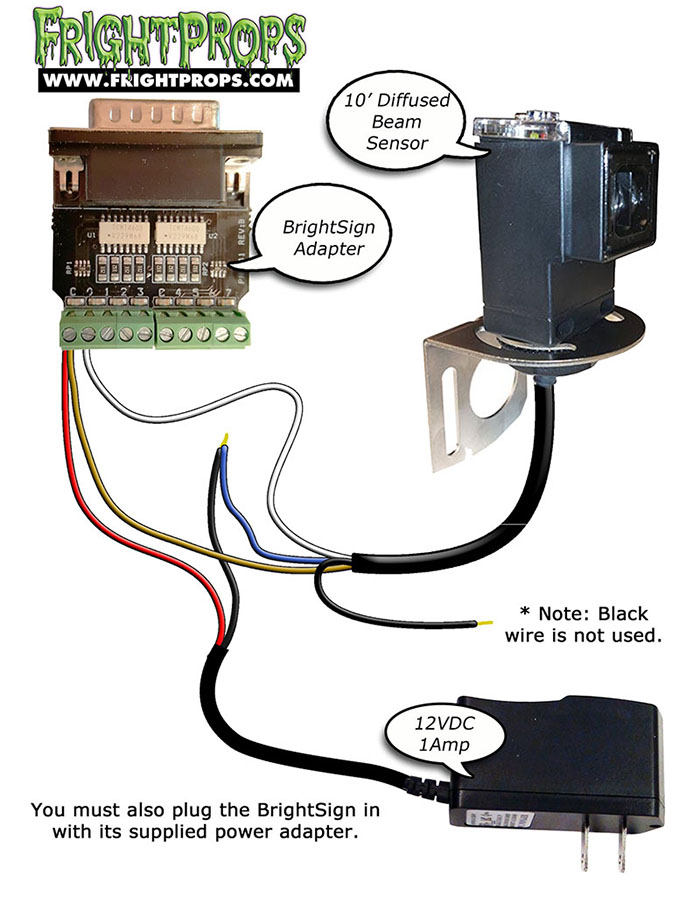

10 Foot Diffused Beam Sensor

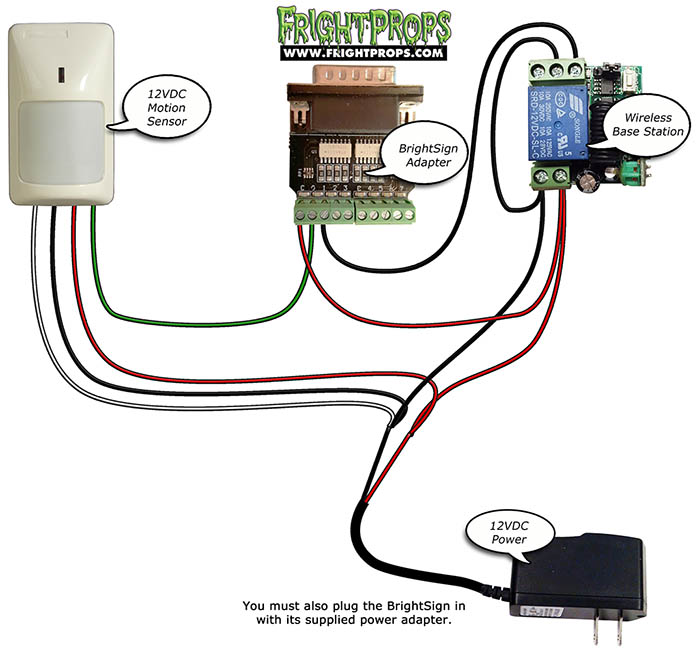

Multiple Trigger Examples
